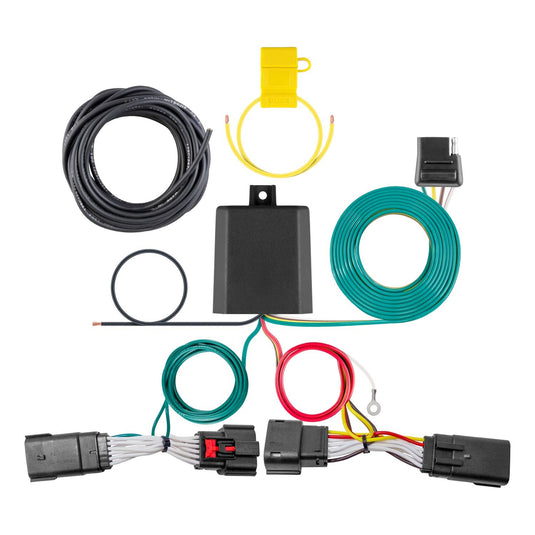

CURT's 56446 is a vehicle-specific trailer wiring connector for Lincoln Nautilus. It plugs into the socket the factory already fitted, so nothing is cut or spliced. The output is a 4-way flat connector, which carries tail lights, brake lights and turn signals. Circuit protection is rated 6.0 A on the turn and brake circuits and 3.0 A on the tail lights.
- 4-way flat output
- Plugs into the factory socket, no cutting or splicing
- For PWM-STT vehicle lighting
- Converter is potted against moisture, battery-powered, circuit-protected, PWM-compatible
- 6.0 A on the turn and brake circuits
- 3.0 A on the tail light circuit
- Surface-mount circuitry
- Dust cover included
- One-year limited warranty
- Requires a connection to the vehicle battery
Specifications
| Part number | 56446 |
|---|---|
| Type | Custom Wiring Connector |
| Output | 4-Way Flat |
| Converter | Universal, Potted, Powered, Protected, PWM |
| Vehicle lighting system | PWM-STT |
| Tail light circuits | 3.0 A |
| Turn / brake circuits | 6.0 A |
| Installation | Novice |
| Warranty | One-year limited |
| Fits | Lincoln Nautilus |
