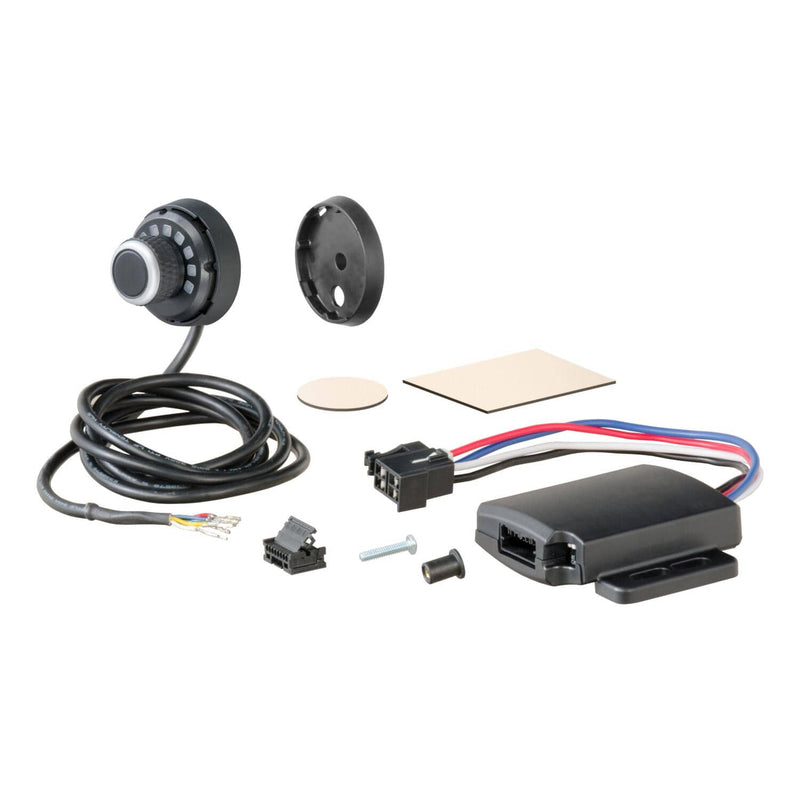

CURT 51170: Spectrum Integrated Proportional Trailer Brake Controller.

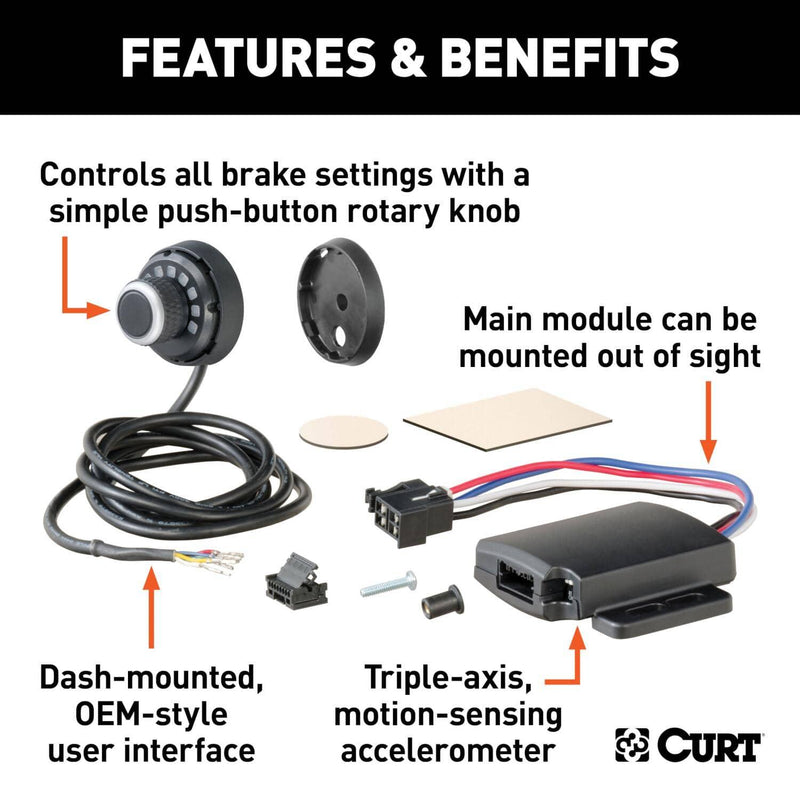

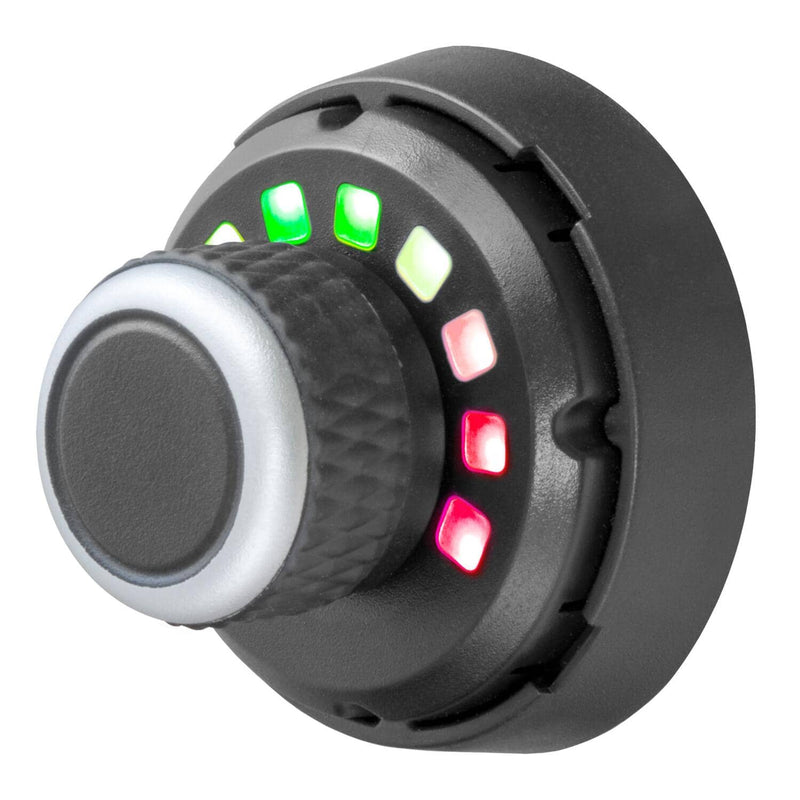

- Controls all brake settings with a simple push-button rotary knob
- Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs
- Main module can be mounted out of sight
- Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
- Easily accessible manual override with the press of a button
- Features two installation options: drill mount or surface adhesive mount
- User-selectable power output and trailer brake light activation
- Automatic leveling and calibration eliminate setup requirements
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)
- Operates 2-8 trailer brakes at a time (1-4 axles)
- Built-in reverse-polarity and short-circuit protection
- Compatible with low-volt, PWM, ABS, and cruise control
- Tow vehicle 'low voltage' and trailer disconnect indicators
- Limited lifetime warranty
Specifications
| Part number | 51170 |
|---|---|
| Brand | CURT |
| Activation | Tri-axis inertia |
| Axles | 1 - 4 / 2 - 8 |
| Display | Tri-color LED |
| Level adjust | Auto |
| Warranty | Limited lifetime |
Notes
- Includes mounting hardware
- Knob outside diameter is 1.9"
