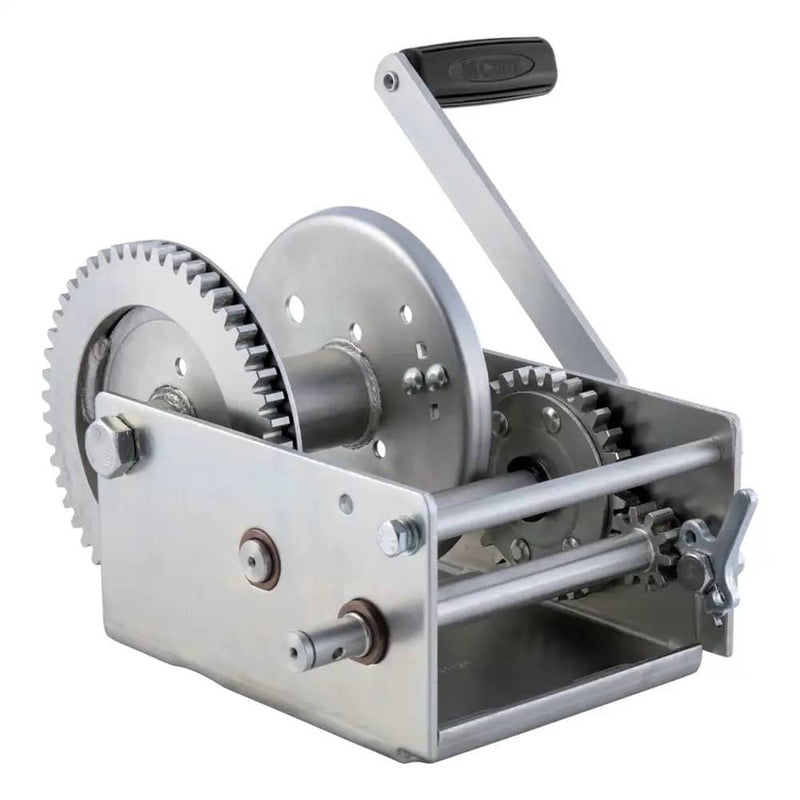

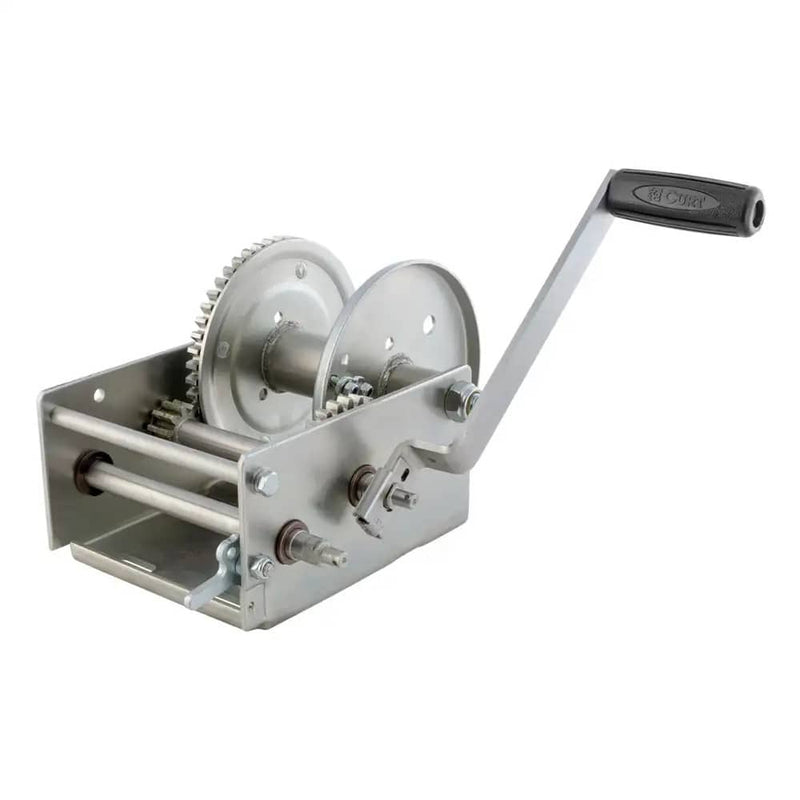

CURT 29538: hand-crank 2-speed winch, 3,800 lb, 15.8:1 low gear ratio, 9.6" handle.
- Universal, slotted screw holes for flexible mounting
- Compatible replacement for most DL and Fulton winches
- Ideal for winching +20-foot-long boats onto boat trailer
- Rated for 3,800 lb capacity
- High-quality, cold-forged steel construction for reliable performance
- Solid gears provide superior strength vs. laminated gears
- 600-hour salt-spray-tested zinc plating for lasting corrosion resistance
- Oil-impregnated, powder-coated metal bushings for smooth operation
- Locking lever for increased safety
- Broached pinion shaft to securely engage the pinion gear
- Two input shafts and quick-detach handle for varying leverage
- 9.6" long handle with comfort grip for ergonomic cranking
- High gear ratio: 5.1:1, low gear ratio: 15.8:1
- Drum hub: 45 mm diameter x 96 mm width
- Cable not included
- Five-year limited warranty
Specifications
| Part number | 29538 |
|---|---|
| Brand | CURT |
| Hub diameter | 1.75" |
| Capacity | 3,800 lb |
| Low gear ratio | 15.8:1 |
| Material | Carbon Steel |
| Finish | Clear Zinc |
Notes
- Designed for use with cables only
- Not compatible with straps
