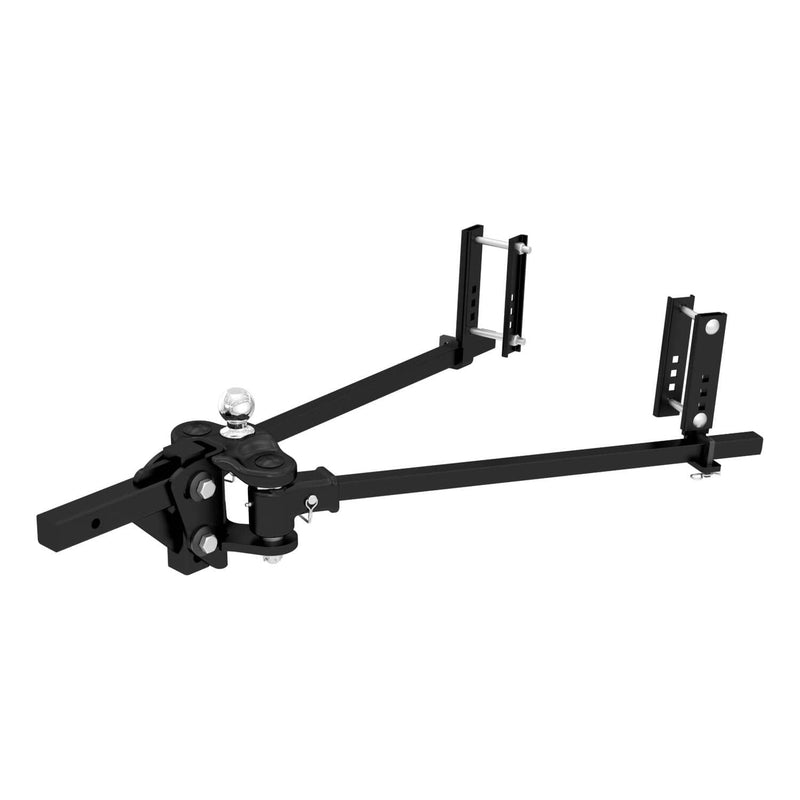

CURT 17501: TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K.

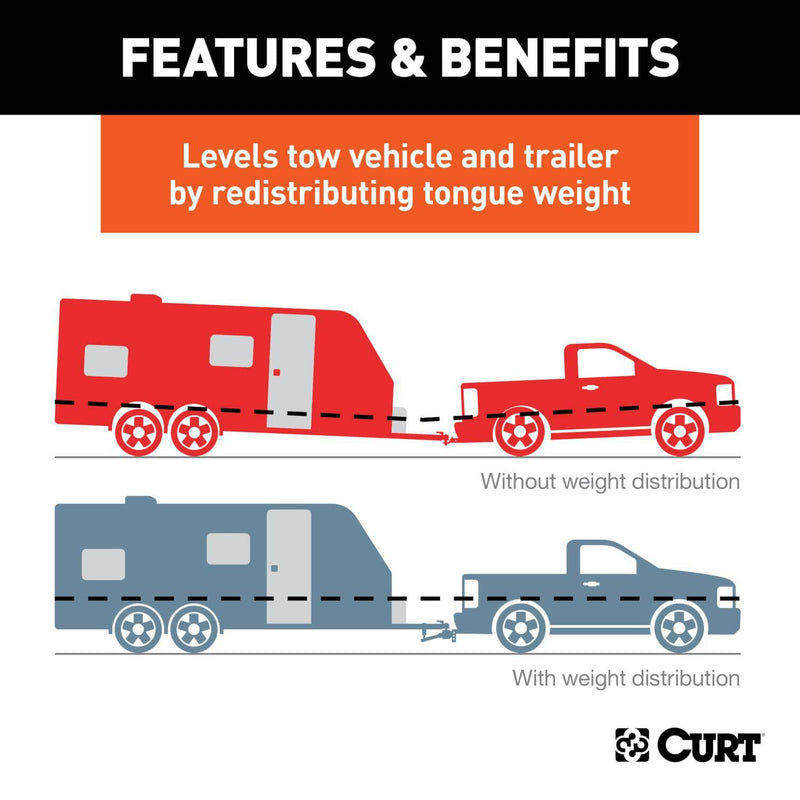

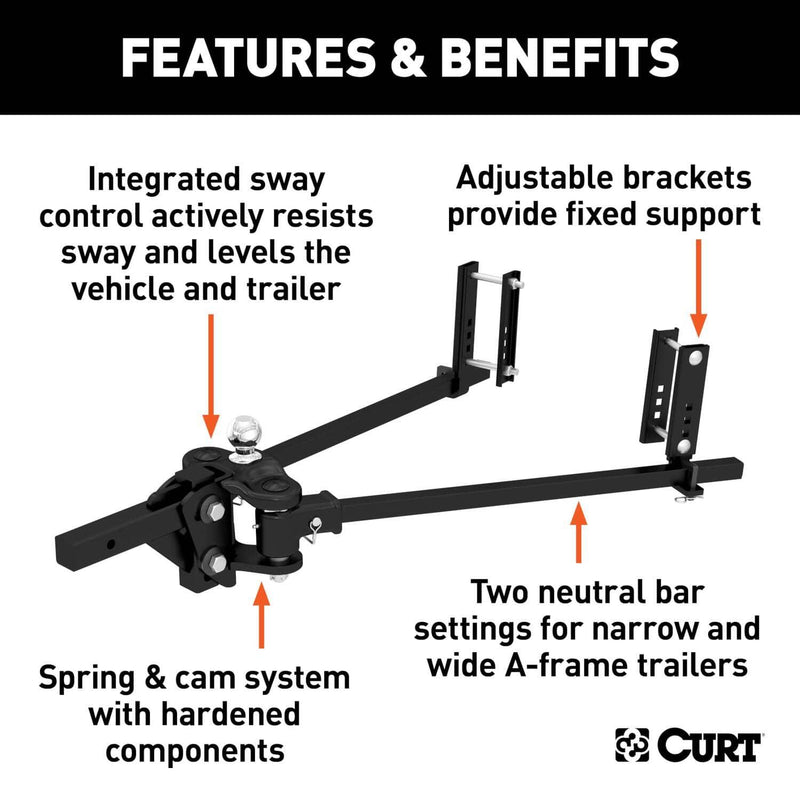

- Integrated sway control actively resists sway and levels the vehicle and trailer
- Four points of sway control work together to keep trailer aligned
- Welded head with cast pieces provides solid spring bar attachment
- Uses spring & cam system with hardened components, instead of metal friction
- Adjustable brackets provide fixed support unlike spring bar chain models
- Brackets use friction to resist lateral movement, replacing a sway control
- 2" shank can be flipped to provide necessary drop or rise
- Hex castle nut allows for easy adjustment for different trailers
- Fits virtually all A-frame trailers, featuring two neutral spring bar settings
- Carbide black powder coat, black-oxide-plated cams and stainless steel balls
- Includes a pre-torqued 2-5/16" trailer ball
- Includes shank, trailer ball, spring bars, head, support brackets, pin & clip
- Limited lifetime warranty (one year on finish and parts)
Specifications
| Part number | 17501 |
|---|---|
| Brand | CURT |
| Gross trailer weight | 10,000 lb - 15,000 lb |
| Rise | 5.75" |
| Tongue weight | 1,000 lb - 1,500 lb |
| Finish | Carbide Black Powder Coat |
| Product weight | 123.6 lb |
| Warranty | Limited lifetime (1-year finish and parts) |
Notes
- Spring bars can be adjusted to 30 or 70 degrees (+/- 5)
- Capacity limited to lowest rated towing component (Lowest hole in shank cannot be used in drop position)
- Apply grease to all lubrication points before first use
- Adhere to the maintenance schedule provided in your user's manual
