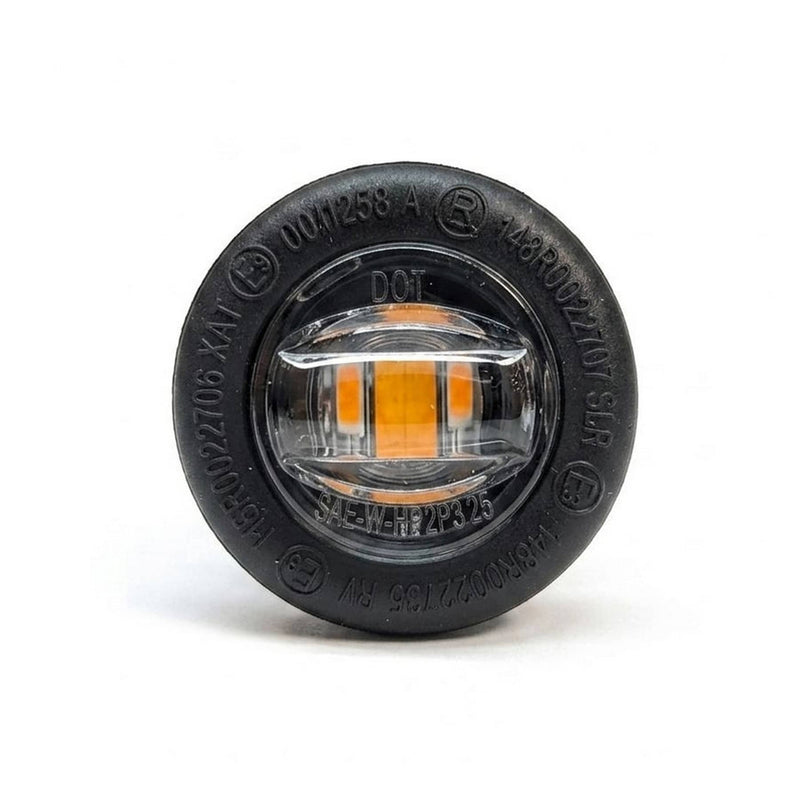

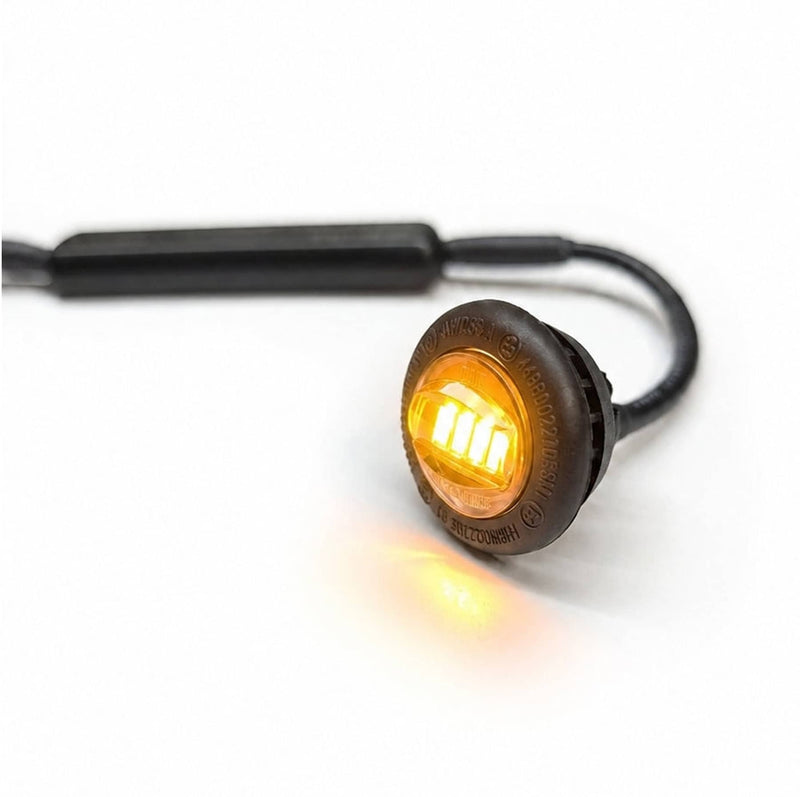

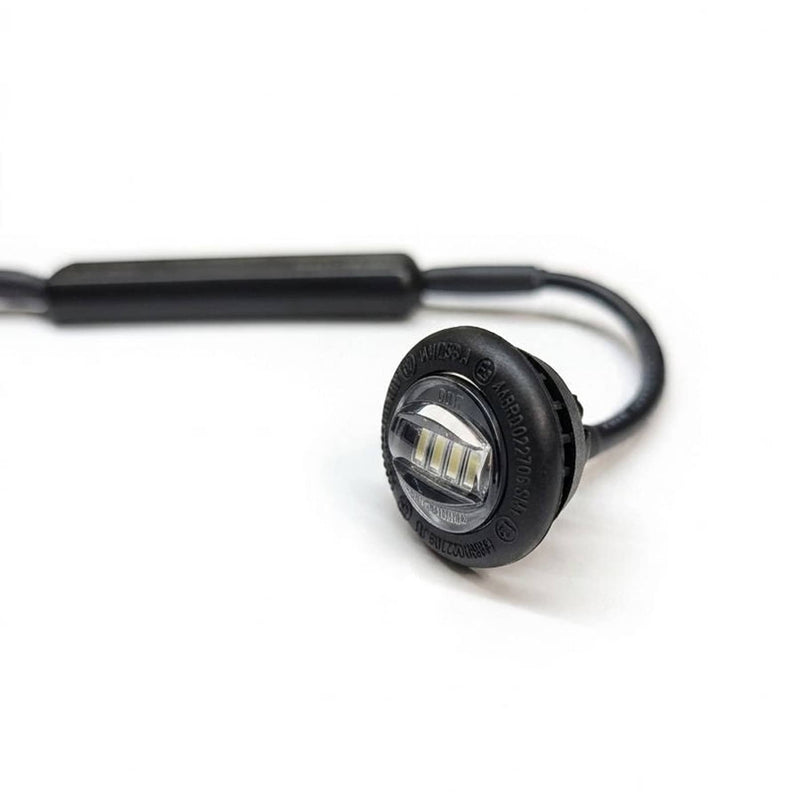

This side marker integrates an amber warning light and position light into one compact assembly, delivering compliant and efficient vehicle lighting. The dual-function configuration simplifies installation, reduces wiring requirements, and provides consistent optical performance, making it suitable for commercial, utility, and emergency vehicle applications where reliability and regulatory compliance are critical.
- LEDs: 2 x 0.2w (marker) / 1 x 5w (strobe)
- Flash Pattern: 8 Synchronizeable
- Colour: Amber
- IP Rating: IP67
- Voltage: DC10-30V
- Amps Marker: 12V/24V: 0.066A/0.033A
- Amps Strobe: 12V/24V: 0.6A/0.3A
- Temperature Range: -30 - +50°C
- Lens Material: Polycarbonate
- Mounting Hole: 19mm, (3/4")
- Size: 18.5mm diameter, 27.5mm deep
- Certification: ECE R65 Single Flash/SAE J595 Class 1 Double Flash, P2P3 DOT
- Warranty: 3 Year Limited
