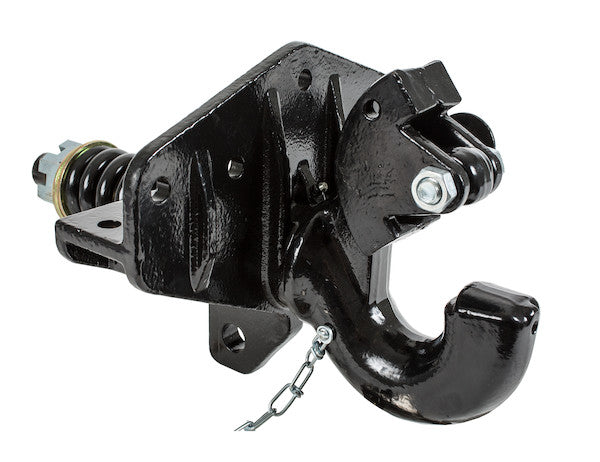

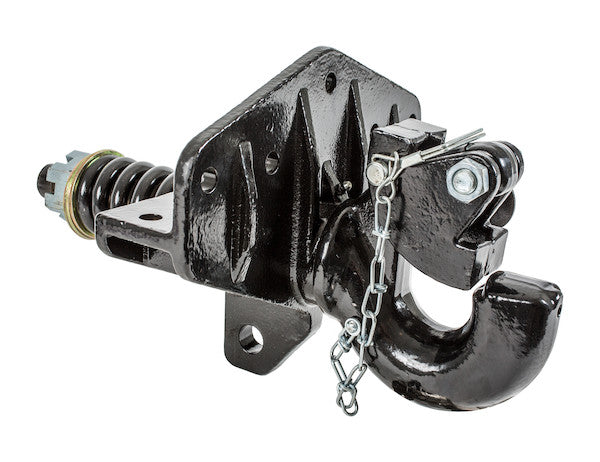

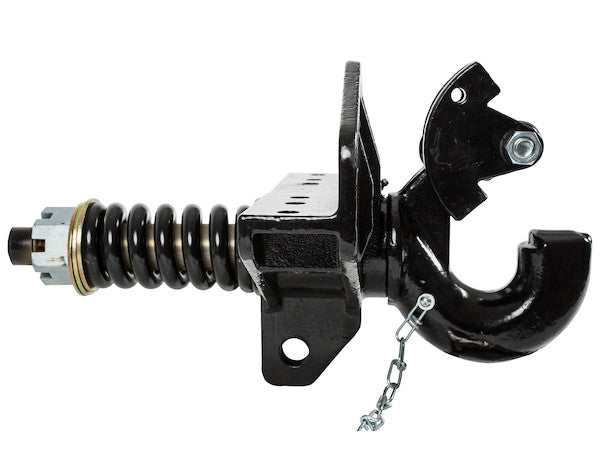

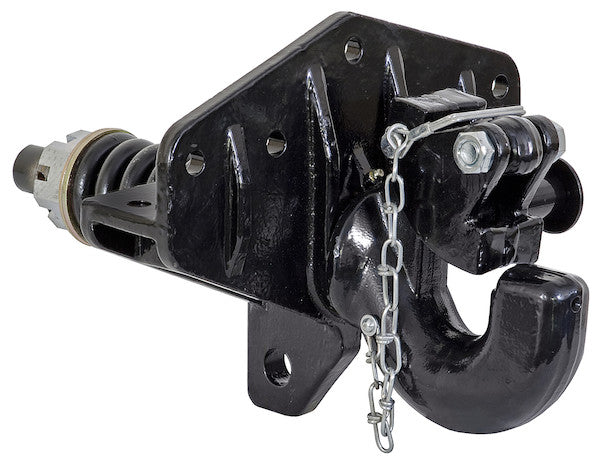

This 15 Ton Pintle Hitch pairs a spring cushion with swivel action and mounts on a T-bracket. The spring reduces stress on acceleration and the swivel gives torsional relief over rough ground, suiting construction and utility equipment, military equipment and highway construction towing at up to 30,000 lb. For off-road use the load should be reduced by 25%.
- T-bracket mount with a built-in lug for attaching additional braces.
- Spring cushion reduces towing stress on acceleration.
- Swivel action provides torsional relief over uneven terrain.
- Forged steel construction rated to 30,000 lb. M.G.T.W.
- Spring-loaded lock arm holds 2-3/8 in. to 3 in. I.D. lunette eyes and drawbars.
- Compares to Holland #PH-T-125A.
Specifications
- Pintle Hook Type: Swivel
- Maximum Gross Trailer Weight: 30,000 lb
- Maximum Vertical Load: 6,000 lb
- Drawbar Eye Inner Diameter: 2.38-3.00

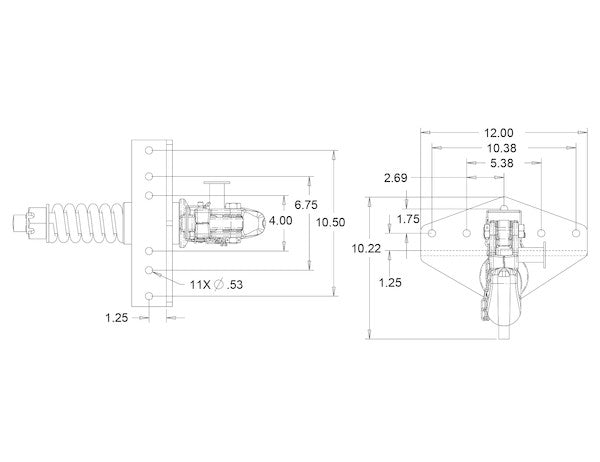

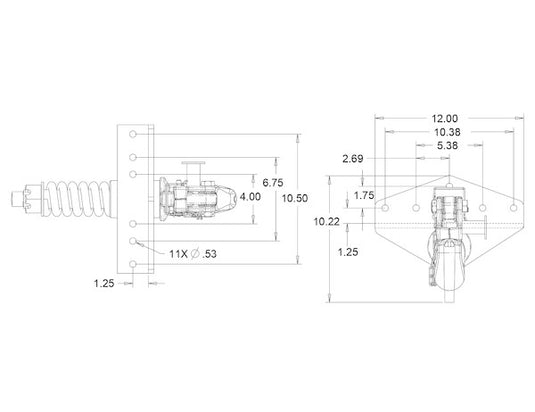

- Horizontal Hole Spacing: 5.375 / 10.375
- Vertical Hole Spacing: 1.75
- Mounting Hole Diameter: 0.562
- Material: Forged Steel
- Finish: Powder-Coat
- Colour: Black
