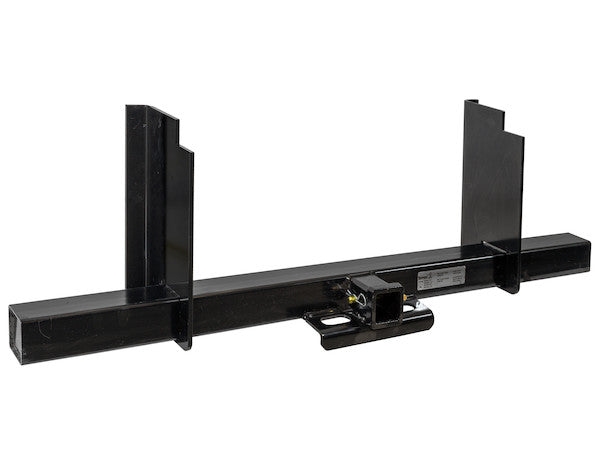

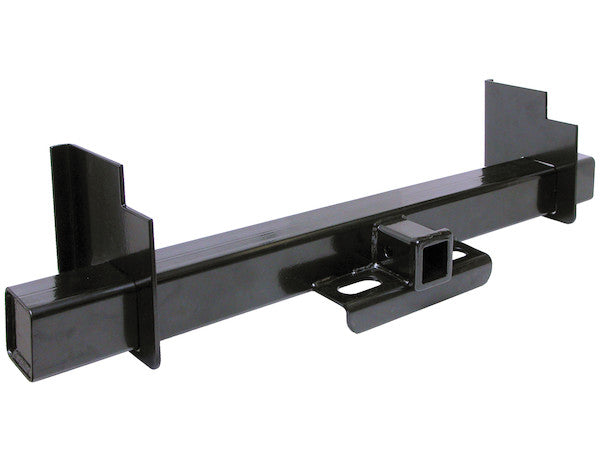

This Class 5 service body hitch receiver is a 62 in. weld-on unit supplied with standard 9-1/2 in. mounting plates. It is rated to 20,000 lb. maximum gross trailer weight, accepts 2-1/2 in. hitches and accessories, and includes a 5/8 in. hitch pin with cotter.
- Rated to 20,000 lb. M.G.T.W. and 2,000 lb. M.V.L.

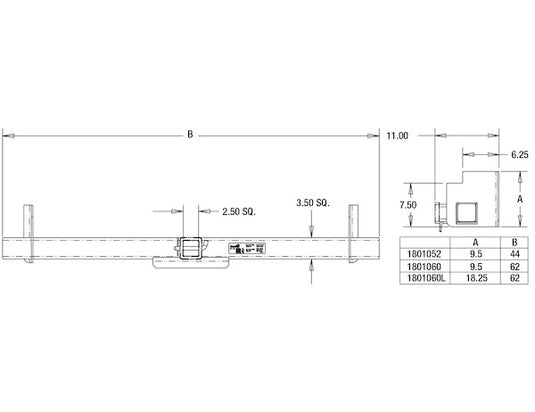

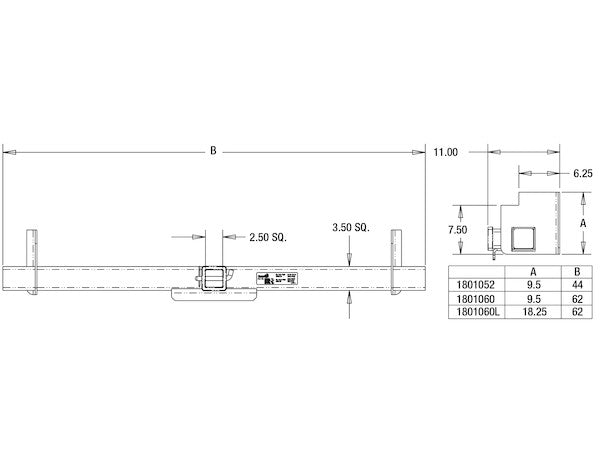

- 62 in. overall width with 9.50 in. standard mounting plates.

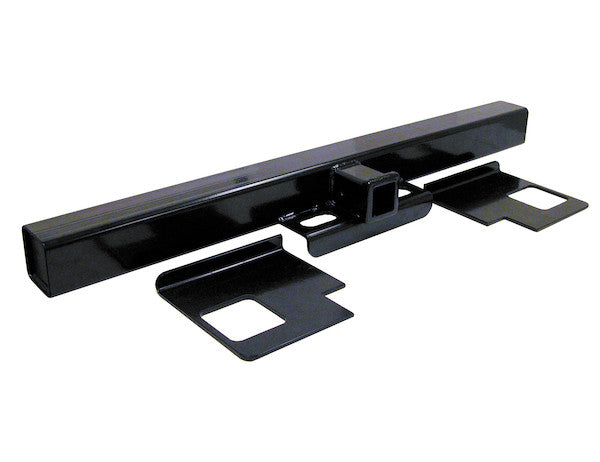

- Mounting plates ship unwelded so they can be positioned to suit the application.
- Accepts 2-1/2 in. hitches and accessories.

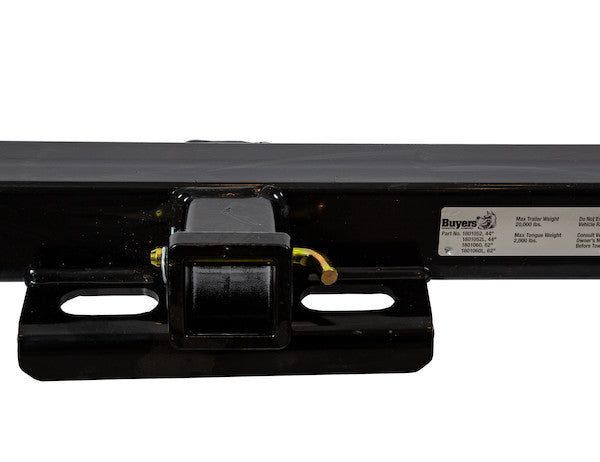

- Includes a 5/8 in. hitch pin with cotter.
- Black powder-coated finish for corrosion resistance.
Specifications
- Class: Class V
- Receiver Tube Size: 2.5
- Mount Type: Weld-on
- Maximum Gross Trailer Weight: 20,000 lb
- Maximum Vertical Load: 2,000 lb
- Mounting Plate Height: 9.50
- Width: 62.00
- Material: Carbon Steel
- Finish: Powder-Coat
- Application: Service Body
