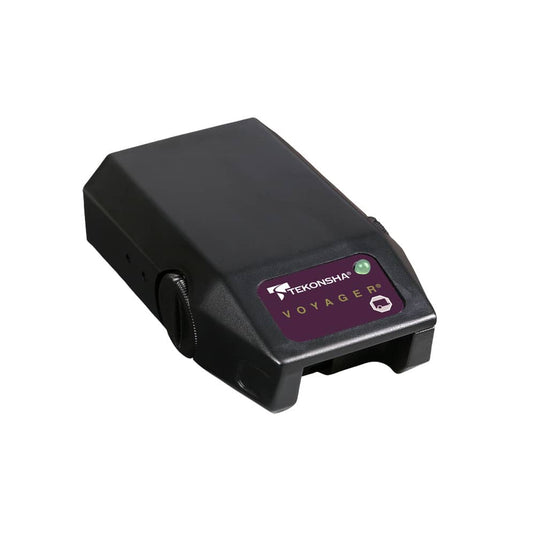

Tekonsha's 9030 is a Voyager proportional trailer brake controller for trailers with 1 to 4 axles. It reads how hard and how fast you brake and applies the trailer brakes to match, so the trailer slows with the vehicle rather than lagging or grabbing. A led output shows the settings and any fault. It can be mounted at any angle and levels itself. Rated to 30A.
- Proportional braking
- Suits trailers with 1 to 4 axles
- For electric brakes
- LED Output display
- Mounts at any angle, self-levelling
- Rated to 30A
- Circuit-breaker protected
- Mounting bracket included
- Limited 5 Year Warranty
Specifications
| Part number | 9030 |
|---|---|
| Type | Trailer Brake Controller |
| Control type | Proportional |
| Trailer axles | 1 to 4 axles |
| Brake type | Electric |
| Display | LED Output |
| Amperage | 30A |
| Diagnostic capable | No |
| Levelling capable | Yes |
| Circuit breaker protected | Yes |
| Solid state | No |
| Hydraulic connections | No |
| Bracket included | Yes |
| Housing colour | Black |
| Material | Plastic |
| Shipping dimensions | 4.5" x 3" x 8" (Shipping) |
| Weight | 0.75 lb |
| UPC | 783192005052 |
| Warranty | Limited 5 Year Warranty |
