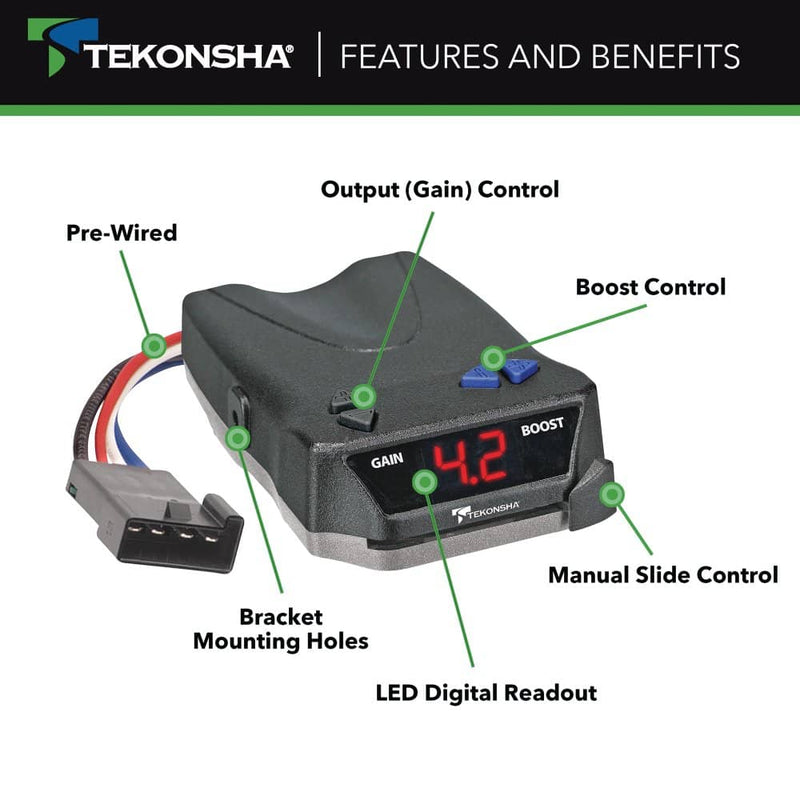

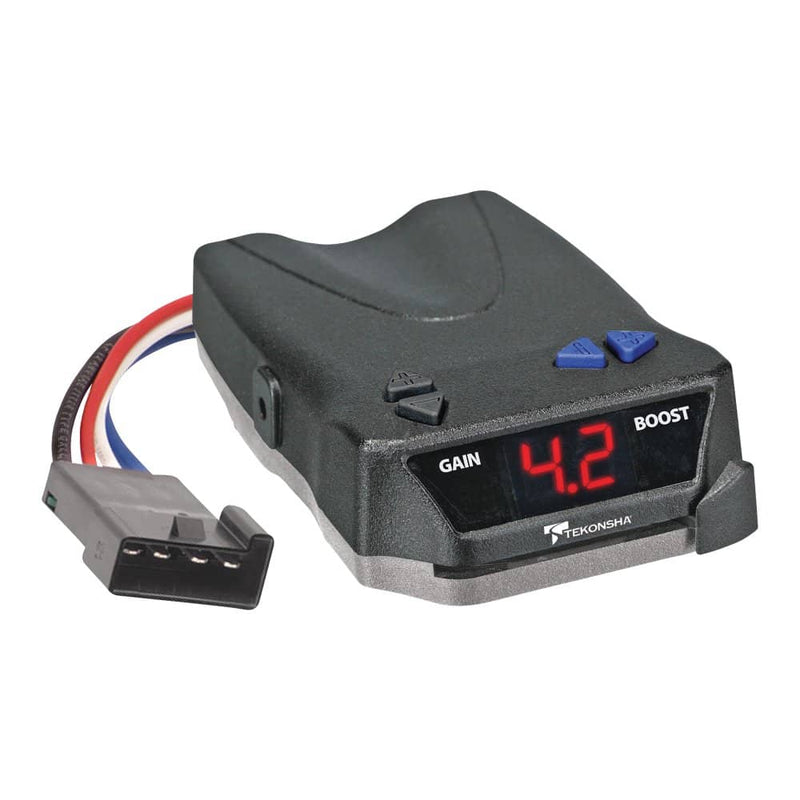

Tekonsha's 8508220 is a BRAKE-EVN proportional trailer brake controller for trailers with 1 to 4 axles. It reads how hard and how fast you brake and applies the trailer brakes to match, so the trailer slows with the vehicle rather than lagging or grabbing. A digital output shows the settings and any fault. It can be mounted at any angle and levels itself. Rated to 30A.
- Proportional braking
- Suits trailers with 1 to 4 axles
- For electric brakes
- Digital Output display
- On-board diagnostics
- Mounts at any angle, self-levelling
- Rated to 30A
- Circuit-breaker protected
- Solid-state construction
- Mounting bracket included
- Limited 5 Year Warranty
Specifications
| Part number | 8508220 |
|---|---|
| Type | Trailer Brake Controller |
| Control type | Proportional |
| Trailer axles | 1 to 4 axles |
| Brake type | Electric |
| Display | Digital Output |
| Amperage | 30A |
| Diagnostic capable | Yes |
| Levelling capable | Yes |
| Circuit breaker protected | Yes |
| Solid state | Yes |
| Hydraulic connections | No |
| Bracket included | Yes |
| Housing colour | Black |
| Material | Plastic |
| Shipping dimensions | 7" x 4.5" x 2.5" (Shipping) |
| Weight | 0.6 lb |
| UPC | 016118162165 |
| Warranty | Limited 5 Year Warranty |
