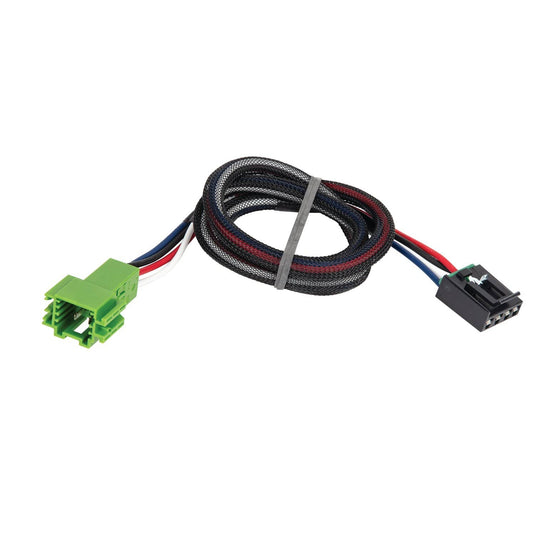

Tekonsha's 306600 is a plug-in brake controller harness cut for 2012-2023 Mercedes-Benz. It connects a Tekonsha brake controller to the vehicle's factory brake-control port, so the controller wires in without splicing into the vehicle loom. Rated at 30A and 12V.
- Vehicle-specific plug-in fit
- No splicing into the factory harness
- Square connector (female)
- 2 connector(s)
- 4 terminals
- Rated to 30A
- Wire colours: Black, Red, Blue White
- Limited 1 Year Warranty
Specifications
| Part number | 306600 |
|---|---|
| Type | Brake Controller Harness |
| Fit | Specific Fit |
| Amperage | 30A |
| Voltage | 12V |
| Connector shape | Square |
| Connector gender | Female |
| Connectors | 2 |
| Terminals | 4 |
| Terminal type | Blade |
| Wire colours | Black, Red, Blue White |
| Shipping dimensions | 7" x 3" x 3" (Shipping) |
| Weight | 0.25 lb |
| UPC | 016118167115 |
| Warranty | Limited 1 Year Warranty |
| Fits | 2012-2023 Mercedes-Benz |
