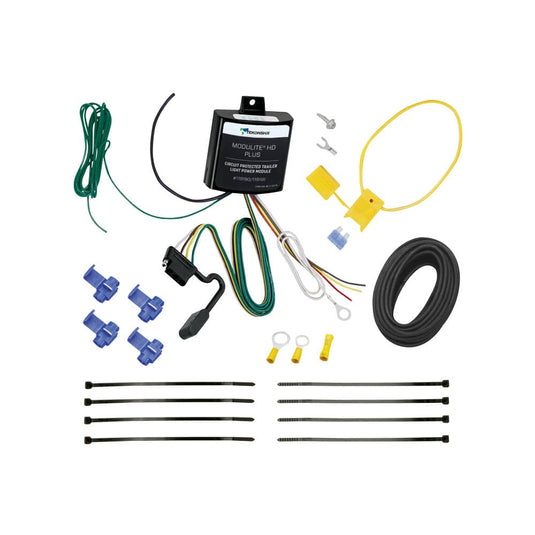

Tekonsha's 119191 is a ModuLite HD Plus trailer light power module. It draws trailer lighting power from the battery rather than the vehicle's circuits, which protects the vehicle's electronics from trailer wiring faults. It is a powered converter. Rated to 4.2A on stop and turn and 7.5A on the taillight circuit.
- Isolates trailer lighting from the vehicle's electrical system
- Overload and short-circuit protection
- Powered
- Rectangle connector
- 4 terminals
- 4.2A stop/turn capacity, 7.5A taillight capacity
- Wiring harness included
- Limited 1 Year Warranty
Specifications
| Part number | 119191 |
|---|---|
| Type | ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit |
| Converter type | Powered |
| Connector shape | Rectangle |
| Terminals | 4 |
| Fit | Universal |
| Wiring harness included | Yes |
| Illuminated | No |
| Stop/turn capacity | 4.2A |
| Taillight capacity | 7.5A |
| Shipping dimensions | 8" x 5" x 3.87" (Shipping) |
| Weight | 1.45 lb |
| UPC | 016118072181 |
| Warranty | Limited 1 Year Warranty |
