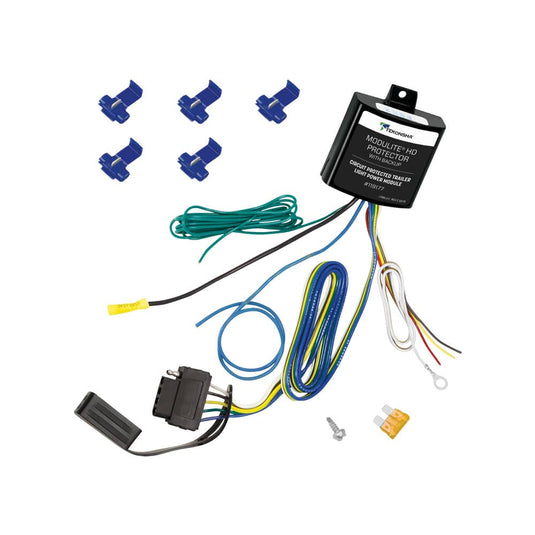

Tekonsha's 119177 is a ModuLite HD trailer light power module. It draws trailer lighting power from the battery rather than the vehicle's circuits, which protects the vehicle's electronics from trailer wiring faults. It is a powered converter. Rated to 4.2A on stop and turn and 7.5A on the taillight circuit.
- Isolates trailer lighting from the vehicle's electrical system
- Overload and short-circuit protection
- Powered
- Rectangle connector
- 4 terminals
- 4.2A stop/turn capacity, 7.5A taillight capacity
- Wiring harness included
- Limited 1 Year Warranty
Specifications
| Part number | 119177 |
|---|---|
| Type | ModuLite® HD Protector w/Integrated Circuit & Overload Protection & 5-Flat Connector for Backup Light or Surge Brake Lockout Circuit |
| Converter type | Powered |
| Connector shape | Rectangle |
| Terminals | 4 |
| Fit | Universal |
| Wiring harness included | Yes |
| Illuminated | No |
| Stop/turn capacity | 4.2A |
| Taillight capacity | 7.5A |
| Shipping dimensions | 7" x 3.98" x 4.2" (Shipping) |
| Weight | 1.19 lb |
| UPC | 016118035186 |
| Warranty | Limited 1 Year Warranty |
