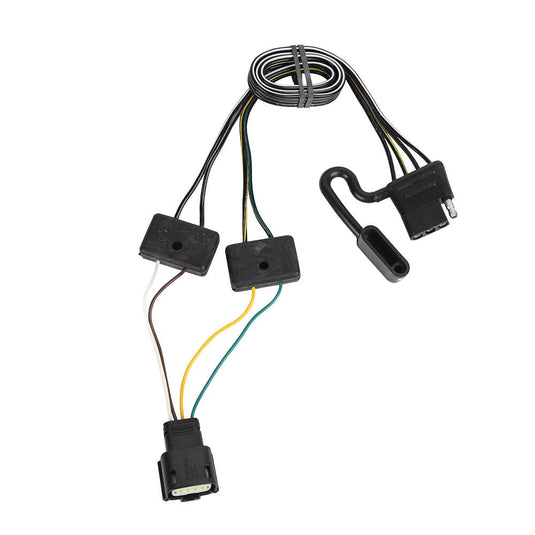

Tekonsha's 118795 is a T-One T-connector wiring harness cut for 2019-2026 Cadillac/Chevrolet/Honda. It plugs straight into the vehicle's factory wiring connectors behind the taillights, so no cutting or splicing is needed. The trailer end is a 4-Way Flat connector. Rated to 5A on stop and turn and 7.5A on the taillight circuit. Suits a 2-wire system vehicle.
- Custom-fit to the vehicle, built to manufacturer specification
- No cutting or splicing required
- 4-Way Flat trailer-side connector
- 5A stop/turn capacity, 7.5A taillight capacity
- 4 wires, 16 ga.
- Wire colours: Brown, Green, Yellow, White
- 2-Wire System
- Weather-proof construction
- Mounting hardware included
- Limited 1 Year Warranty
Specifications
| Part number | 118795 |
|---|---|
| Type | T-One® T-Connector Custom Harness |
| Connector | 4-Way Flat |
| Fit | Specific |
| Circuit protected | No |
| Harness type | Male Female |
| Terminals | 4 |
| Wires | 4 |
| Wire gauge | 16 ga. |
| Wire colours | Brown, Green, Yellow, White |
| Stop/turn capacity | 5A |
| Taillight capacity | 7.5A |
| Electrical system | 2-Wire System |
| Power lead required | No |
| Hardware included | Yes |
| Shipping dimensions | 3.8" x 2.6" x 7" (Shipping) |
| Weight | 0.35 lb |
| UPC | 016118152999 |
| Warranty | Limited 1 Year Warranty |
| Fits | 2019-2026 Cadillac/Chevrolet/Honda |
| Manufacturer applications | 2023-2026 Cadillac LYRIQ, 2019-2025 Cadillac XT4, 2024-2025 Chevrolet Blazer EV, 2024-2026 Chevrolet Equinox EV, 2024-2026 Honda Prologue |
