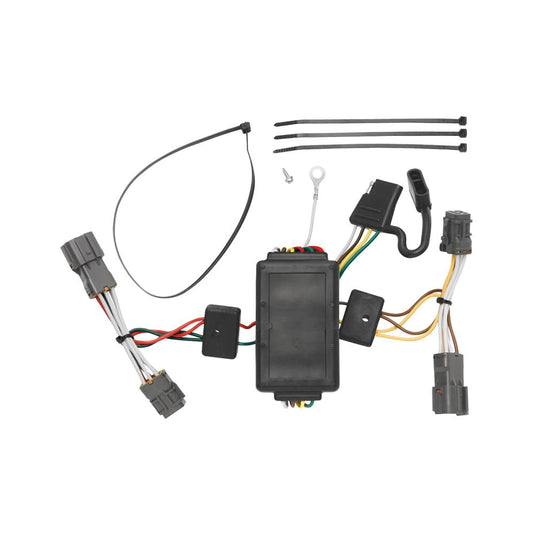

Tekonsha's 118431 is a T-One T-connector wiring harness cut for 2007-2019 Kia Rondo/Soul. It plugs straight into the vehicle's factory wiring connectors behind the taillights, so no cutting or splicing is needed. The trailer end is a 4-Way Flat connector. Rated to 2.1A on stop and turn and 5A on the taillight circuit. Suits a 3-wire system vehicle.
- Custom-fit to the vehicle, built to manufacturer specification
- No cutting or splicing required
- 4-Way Flat trailer-side connector
- 2.1A stop/turn capacity, 5A taillight capacity
- 4 wires, 16 ga.
- Wire colours: Brown, Green, Yellow, White
- 3-Wire System
- Weather-proof construction
- Mounting hardware included
- Limited 1 Year Warranty
Specifications
| Part number | 118431 |
|---|---|
| Type | T-One® T-Connector Custom Harness |
| Connector | 4-Way Flat |
| Fit | Specific |
| Circuit protected | Yes |
| Harness type | Male Female |
| Terminals | 4 |
| Wires | 4 |
| Wire gauge | 16 ga. |
| Wire colours | Brown, Green, Yellow, White |
| Stop/turn capacity | 2.1A |
| Taillight capacity | 5A |
| Electrical system | 3-Wire System |
| Power lead required | No |
| Hardware included | Yes |
| Shipping dimensions | 7" x 4" x 3" (Shipping) |
| Weight | 1 lb |
| UPC | 016118061789 |
| Warranty | Limited 1 Year Warranty |
| Fits | 2007-2019 Kia Rondo/Soul |
| Manufacturer applications | 2007-2012 KIA Rondo, 2010-2019 KIA Soul |
