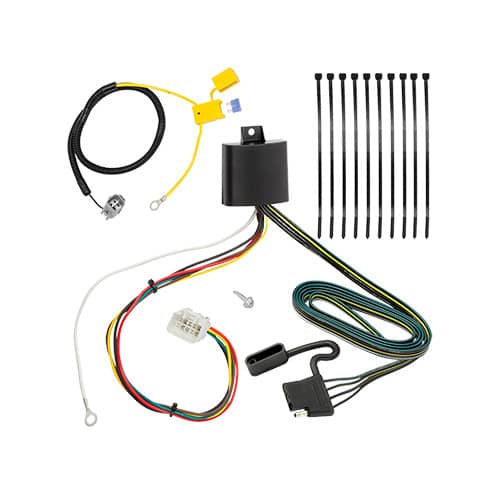

Tekonsha's 118277 is a custom tow wiring harness cut for 2016-2021 Mitsubishi Outlander. It plugs straight into the vehicle's factory wiring connectors behind the taillights, so no cutting or splicing is needed. The trailer end is a 4-Way Flat connector, and a circuit-protected ModuLite HD module keeps the trailer lighting isolated from the vehicle's electrical system. Suits a 3-wire system vehicle.
- Custom-fit to the vehicle, built to manufacturer specification
- No cutting or splicing required
- 4-Way Flat trailer-side connector
- Circuit-protected ModuLite HD module included
- 4 wires, 18 AWG, .85 AVSS
- Wire colours: Brown, Green, Yellow, White
- 3-Wire System
- Weather-proof construction
- Mounting hardware included
- Limited 1 Year Warranty
Specifications
| Part number | 118277 |
|---|---|
| Type | Tow Custom Harness |
| Connector | 4-Way Flat |
| Fit | Specific |
| Circuit protected | Yes |
| Harness type | Male Female |
| Terminals | 4 |
| Wires | 4 |
| Wire gauge | 18 AWG, .85 AVSS |
| Wire colours | Brown, Green, Yellow, White |
| Electrical system | 3-Wire System |
| Power lead required | No |
| Hardware included | Yes |
| Shipping dimensions | 8.88" x 3.98" x 2.88" (Shipping) |
| Weight | 0.9 lb |
| UPC | 016118145496 |
| Warranty | Limited 1 Year Warranty |
| Fits | 2016-2021 Mitsubishi Outlander |
| Manufacturer applications | 2016-2021 Mitsubishi Outlander |
