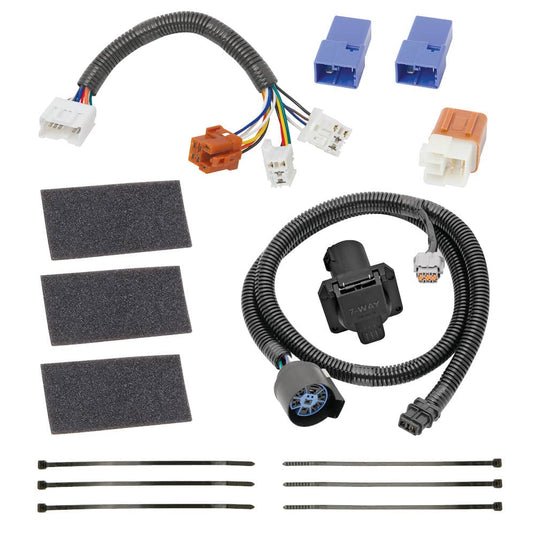

Tekonsha's 118266 is a custom tow wiring harness cut for 2005-2025 Nissan & Suzuki. It plugs straight into the vehicle's factory wiring connectors behind the taillights, so no cutting or splicing is needed. The trailer end is a 7-Way connector. Suits a 3-wire system vehicle.
- Custom-fit to the vehicle, built to manufacturer specification
- No cutting or splicing required
- 7-Way trailer-side connector
- 7 wires, 18 AWG, .85 AVSS
- Wire colours: Brown, Green, Yellow, White, Black, Red, Blue
- 3-Wire System
- Weather-proof construction
- Mounting hardware included
- Limited 1 Year Warranty
Specifications
| Part number | 118266 |
|---|---|
| Type | Tow Custom Harness |
| Connector | 7-Way |
| Fit | Specific |
| Circuit protected | No |
| Harness type | Male Female |
| Terminals | 7 |
| Wires | 7 |
| Wire gauge | 18 AWG, .85 AVSS |
| Wire colours | Brown, Green, Yellow, White, Black, Red, Blue |
| Electrical system | 3-Wire System |
| Power lead required | No |
| Hardware included | Yes |
| Shipping dimensions | 11.25" x 8.1" x 3.18" (Shipping) |
| Weight | 1.35 lb |
| UPC | 016118117042 |
| Warranty | Limited 1 Year Warranty |
| Fits | 2005-2025 Nissan & Suzuki |
| Manufacturer applications | 2005-2024 Nissan Frontier, 2005-2012 Nissan Pathfinder, 2005-2015 Nissan Xterra, 2009-2012 Suzuki Equator |
