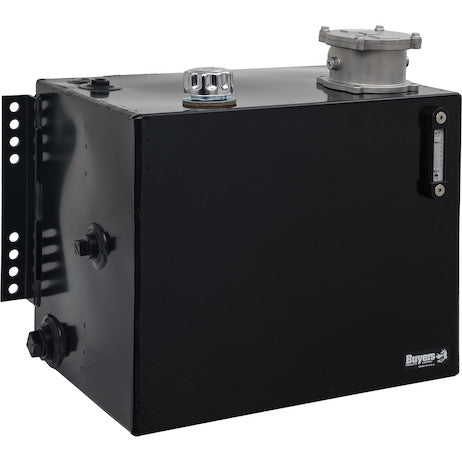

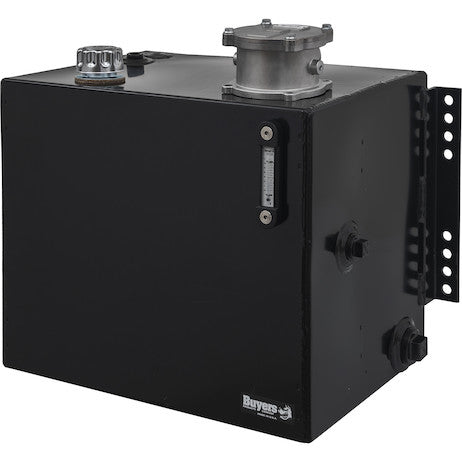

This 30 gallon side mount steel hydraulic tank ships with a 10 micron HFA5S series return filter, making it a straightforward choice for dump body and other truck hydraulic systems. The 13 gauge HRPO steel body carries a corrosion resistant black powder-coated finish, and internal baffles between suction and discharge aid fluid cooling.
- 30 gallon usable capacity with a welded-on bracket for mounting to the truck frame.
- Pre-drilled for the included 10 micron HFA5S series return filter (shipped separately).
- 13 gauge HRPO steel with black powder-coated finish.
- Internal baffles between suction and discharge help cool the fluid.
- Sight fluid level and temperature gauge included.
- Magnetic drain plug helps catch metallic particle contamination; quarter-turn chrome filler breather with wire basket strainer.
Specifications
- Capacity: 30 gallons (30 gallons usable)
- Material: Carbon steel (HRPO), 13 gauge
- Reservoir shape: Rectangle
- Mount position: Side mount
- Suction port size: 2 in. NPT
- Additional port size: 1-1/4 in. NPT
- Height: 22 in. | Depth: 17.00 in. | Width: 28.35 in.
- Finish: Black powder-coat
