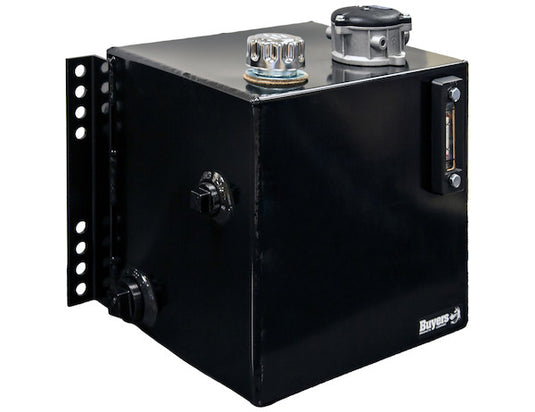

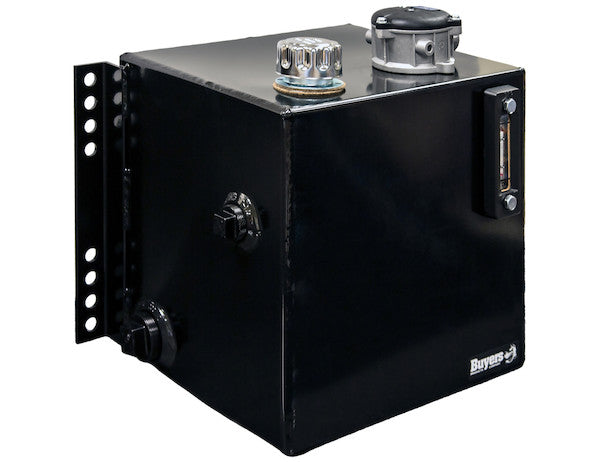

The tough, durable 15 Gallon Side Mount Steel Reservoir with Micron Filter from Buyers Products features a system-protective filter for lasting performance. It's ideal for a 1 ton truck and small hydraulic applications like spreaders.
The reservoir features 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance, and a welded-on bracket for mounting to your truck frame.
It comes pre-drilled for a tank-mounted HFA9 series return filter to help protect your hydraulic system from damaging contaminants. You can order the reservoir with or without a 10 or 25 micron filter (shipped separately).
Product Common Use: Spreaders, Landscaping
Product Features
-
Tough, durable 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance.
-
Pre-drilled for tank-mounted HFA9 series micron filter.
-
Fluid level and temperature gauge included.
-
Contaminant-catching magnetic drain plug.
-
Welded-on mounting bracket for easy install to the truck frame.
-
a quarter-turn chrome filler breather with a wire basket strainer
-
a sight fluid level and temperature gauge
-
an interior baffle between suction and discharge to aid in fluid cooling
-
a magnetic drain plug to aid in preventing metallic particle contamination

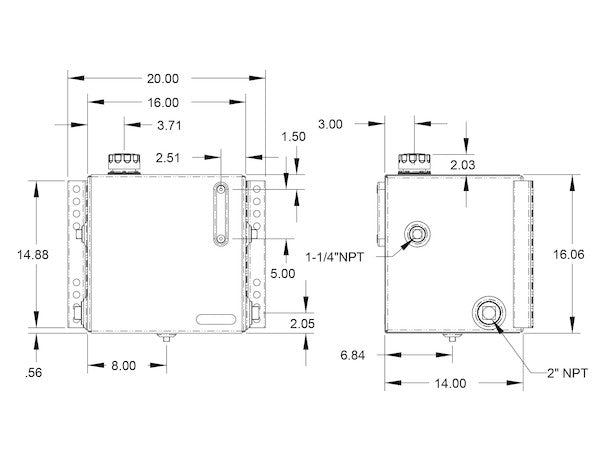

- Capacity15 Gal
- ColorBlack
- Depth14.50 "
- FinishPowder-Coat
- Hardware And Brackets Included (Y/N)No
- Height16.1 "
- Integral Brackets (Y/N)Yes
- Integral Level Gauge (Y/N)Yes
- MaterialCarbon Steel
- Material Gauge13
- Mount PositionSide Mount
- Oil Level Gauge (Y/N)Yes
- Reservoir ShapeRectangle
- Temperature Gauge (Y/N)Yes
- Width19.58 "
- Usable Capacity11 Gal
- Suction Port Size2 NPT
- Diffuser Included (Y/N)No
- Included Valve (Y/N)No
- Magnetic Drain Plug (Y/N)Yes
- Return Line Filter Included (Y/N)Yes
- Return Line Filter Rating10 µm
- Additional Port Size 1 1/4 NPT
