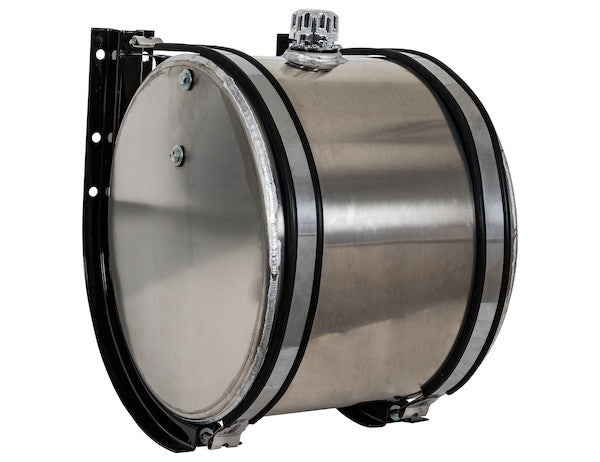

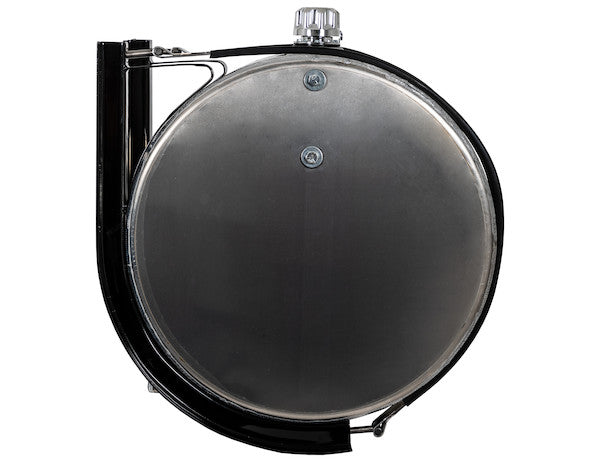

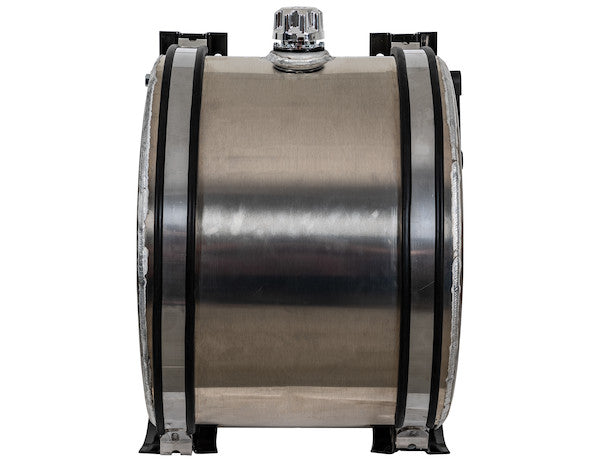

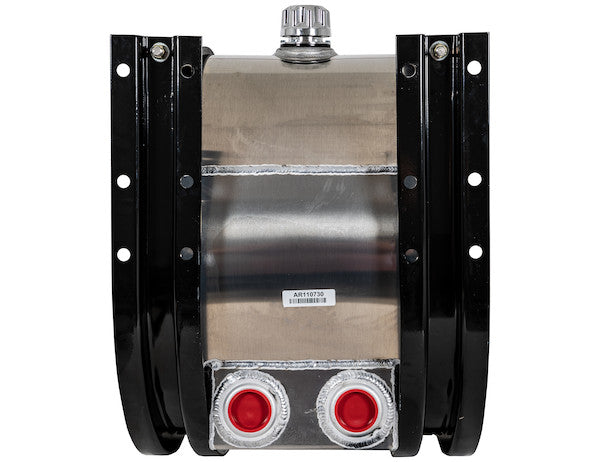

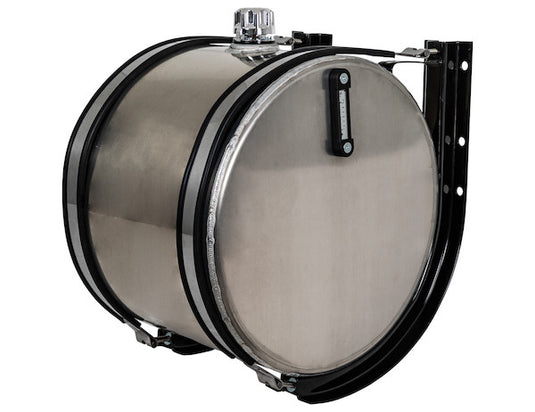

This 35 gallon side mount cylindrical aluminum hydraulic tank puts the suction and return connections at the rear of the tank for clean line routing along the frame rail. It carries dual rear 2 in. NPT female-threaded suction/return ports and is internally baffled to suppress sloshing and lower operating temperatures. The aluminum body is light weight and highly corrosion resistant, so it reads as a natural extension of the truck.
- 35 gallon usable capacity in a cylindrical aluminum body.
- Rear port layout keeps suction and return routing tidy along the frame.
- Internally baffled to reduce sloshing and help control fluid temperature.
- Mounting brackets wrap underneath the tank for added stability and support.
- Rubber-insulated stainless steel mounting straps included.

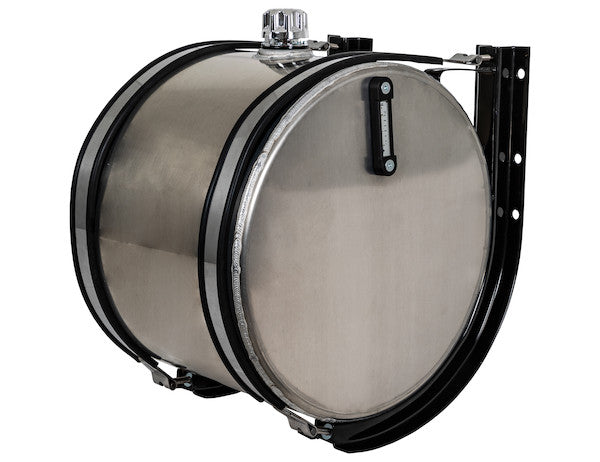

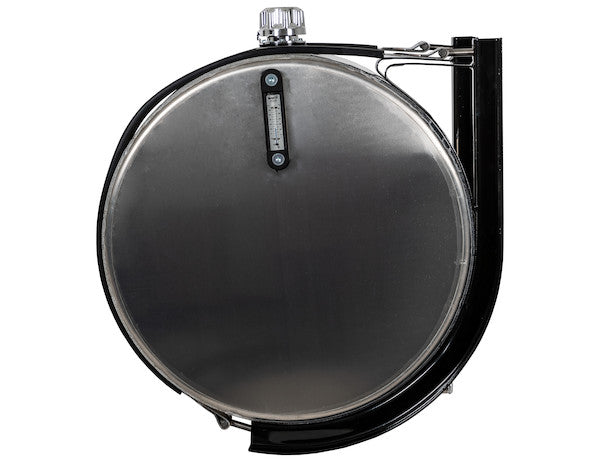

- Includes a chrome-plated polymer filler-strainer breather cap and a level/temperature sight gauge that mounts on either end.
Specifications
- Capacity: 35 gallons (35 gallons usable)
- Material: Aluminum, 11 gauge
- Reservoir shape: Cylinder
- Mount position: Side mount
- Suction port size: 2 in. NPT
- Outside diameter: 24.21 in.
- Height: 24 in. | Depth: 24 in. | Width: 19 in.
