4 Inch Lift Kit from Rough Country, part 75131, for 2016-2021 Toyota Tundra. This is the N3 Shocks, Lifted Struts (4WD Only) configuration. Estimated install time is 8-10 hours.
This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance.
Features
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Incredible ride quality & performance
- Monotube design
- Nitrogen-charged
- 46mm high-flow piston

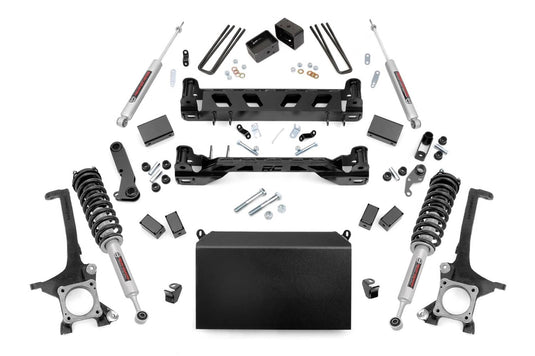

What's in the box
- Front: Lifted knuckles
- Front: Strut spacers
- Front: Front crossmember
- Front: Rear crossmember
- Front: Steering stops
- Front: Brake line brackets
- Front: Differential drop brackets
- Front: Bumpstop brackets
- Front: Sway-bar brackets
- Front: Lower skid plate
- Front: Hardware
- Rear: Fabricated lift blocks
- Rear: U-bolts
- Rear: Brake line brackets
- Rear: Hardware
- Shocks: (2) Premium N3 Series (Rear)
Notes
- N3 Loaded Struts are ONLY for 4WD models.
- Cutting and drilling is required.
- Does NOT fit Pro Series models
- Does NOT fit XSP-X models.
- Requires 18-inch or larger wheels.
- Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
- In some cases minor trimming may be needed to clear 35-inch tires.
- On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.
Specifications
| Part number | 75131 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 4" |
| Configuration | N3 Shocks, Lifted Struts (4WD Only) |
| Drive | 4WD |
| Estimated install time | 8-10 hours |
| Tire and wheel fitment | 295/60R20 on 20x10 (-18 offset); 295/60R20 on 20x9 (+20 offset); 295/60R20 on 20x10 (-19 offset); 35x12.50R18 on 18x8.5 (+1 offset); 35x12.50R18 on 18x9 (+0 offset); 35x12.50R18 on 18x8.5 (+0 offset); more |
| Shipping weight | 200.1 lb |
| Instruction sheet | 921752000: Kit Installation;Toyota 2007-19 Tundra Loaded Strut: Optional Strut Installation |
| Fits | 2016-2021 Toyota Tundra |
| Manufacturer applications | 2016-2021 Toyota Tundra (4WD, RWD) |
