Rough Country 4 Inch Lift Kit - 2016-2021 Toyota Tundra

4 Inch Lift Kit from Rough Country, part 75130, for 2016-2021 Toyota Tundra. Estimated install time is 8-10 hours.

This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance.

Features

• Unmatched ground clearance due to high clearance crossmember design.
• 100% precision laser cut materials used in latest computer aided design process.
• Levels the front with the rear of the vehicle
• Will work with factory 18-inch or larger wheels.
• Requires no modification to the stock differential mounts, drivetrain or exhaust.
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
• Incredible ride quality & performance
• Monotube design
• Nitrogen-charged
• 46mm high-flow piston

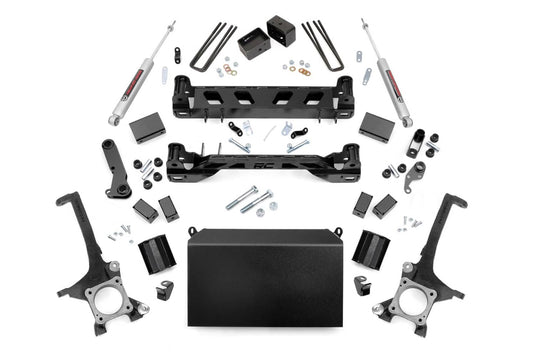

What's in the box

• Front: Lifted knuckles
• Front: Strut spacers
• Front: Front crossmember
• Front: Rear crossmember
• Front: Steering stops
• Front: Brake line brackets
• Front: Differential drop brackets
• Front: Bumpstop brackets
• Front: Sway-bar brackets
• Front: Lower skid plate
• Front: Hardware
• Rear: Fabricated lift blocks
• Rear: U-bolts
• Rear: Brake line brackets
• Rear: Hardware
• Shocks: (2) Premium N3 Series (Rear)

Notes

• N3 Loaded Struts are ONLY for 4WD models.
• Cutting and drilling is required.
• Does NOT fit Pro Series models
• Does NOT fit XSP-X models.
• Requires 18-inch or larger wheels.
• Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
• In some cases minor trimming may be needed to clear 35-inch tires.
• On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.
