3.5 Inch Lift Kit from Rough Country, part 69370, for 2007-2018 Jeep Wrangler JK. This is the V2 Monotube configuration. Estimated install time is 4-5 hours.
Experience the ultimate ride and handling with Rough Country's 3.5-Inch Control Arm Drop Kit for Jeep JK. This all-inclusive upgrade delivers smooth handling, enhanced ride quality, and aggressive off-road capability for a complete suspension transformation that performs on and off the road.
Features
- Simple Bolt-On Installation: Hassle-free, no-cutting installation gets you back on the trail faster.
- Enhanced Ground Clearance: Gain extra height for better obstacle clearance and off-road capability.
- Optimized Suspension Geometry: Control arm drop brackets restore proper alignment for smoother handling and improved ride quality.
- Corrected Coil Spring Angles: Rear coil correction plates adjust the coil spring angle by 10 degrees for increased suspension efficiency and longevity.
- Factory-Tuned Coil Springs: Maintain stock ride comfort with coils calibrated to the factory spring rate.
- Custom Shock Options: Select from nitrogen-charged N3 shocks, V2, M1 Monotube, or premium M1R shocks for a ride tailored to your off-road needs and preferences.

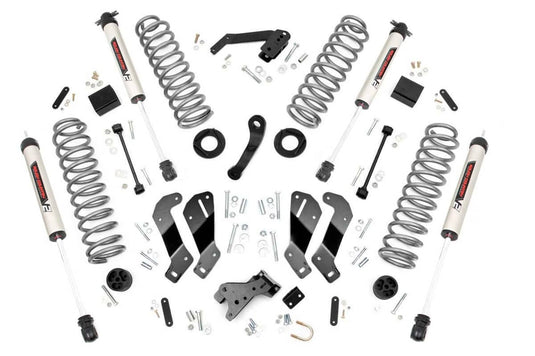

What's in the box
- Front: Lifted Coil Springs
- Front: Control Arm Drop Brackets
- Front: Track Bar Drop Bracket
- Front: Pitman Arm
- Front: Brake Line Relocation Brackets
- Front: Hardware
- Rear: Lifted Coil Springs
- Rear: Coil Correction Plates
- Rear: Track Bar Drop Bracket
- Rear: Extended Sway-Bar Links
- Rear: Brake Line Relocation Brackets
- Rear: Hardware
Notes
- Does NOT fit 4-door models.
- 2012-2018 models require exhaust modifications to clear the front driveshaft SKU: 1030.
- On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.
Specifications
| Part number | 69370 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 3.5" |
| Configuration | V2 Monotube |
| Drive | 4WD |
| Estimated install time | 4-5 hours |
| Tire and wheel fitment | 285/75R18 on 18x8.5 (+0 offset); 285/75R17 on 17x8.5 (+1 offset); 285/75R18 on 18x8.5 (+1 offset); 285/75R18 on 18x9 (-12 offset); 295/70R18 on 18x10 (-25 offset); 35x12.50R17 on 17x9 (-12 offset); more |
| Shipping weight | 119.3 lb |
| Instruction sheet | 921693300 |
| Fits | 2007-2018 Jeep Wrangler JK |
| Manufacturer applications | 2007-2017 Jeep Wrangler Rubicon (4WD); 2007-2017 Jeep Wrangler (4WD) |
