4 Inch Lift Kit from Rough Country, part 68230, for 2007-2018 Jeep Wrangler JK. This is the Premium N3 configuration. Estimated install time is 4-5 hours.
Total transformation for your Jeep starts with Rough Country's 4-Inch Suspension Lift Kit. This all-inclusive upgrade delivers aggressive styling, enhanced ground clearance, and the rugged performance you need to conquer any trail with confidence.
Features
- Hassle-Free Bolt-On Installation: Simple, no-cutting required design for a quick and secure setup.
- Enhanced Ground Clearance: Gain extra ride height for improved off-road capability and obstacle clearance.
- Optimized Rear Coil Geometry: Coil correction plates adjust the rear coil spring angle by 10 degrees for improved suspension efficiency and longevity.
- Fits Up to 35-Inch Tires: Provides the necessary clearance to run larger tires for a more aggressive stance and better trail performance.
- Custom Shock Options: Select from nitrogen-charged N3 shocks, V2, M1 Monotube, or premium M1R shocks for a ride tailored to your off-road needs and preferences.

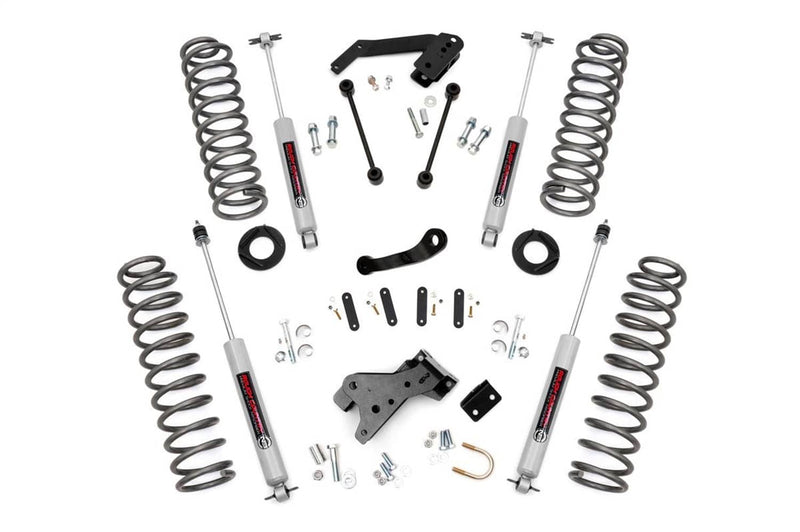

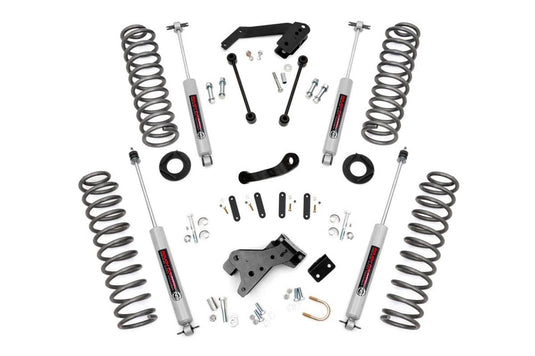

What's in the box
- Front: Lifted Coil Springs
- Front: Track Bar Drop Bracket
- Front: Pitman Arm
- Front: Brake Line Relocation Brackets
- Front: Shock Relocation Brackets
- Front: Cam Bolts
- Front: Hardware
- Rear: Lifted Coil Springs
- Rear: Extended Sway-Bar Links
- Rear: Coil Correction Plates
- Rear: Track Bar Drop Bracket
- Rear: Brake Line Relocation Brackets
- Rear: Hardware
- Shocks: (4) Premium N3 Shock Absorbers
Notes
- Does NOT fit 4-door models.
- 2012-2018 models require exhaust modifications to clear the front driveshaft SKU: 1030.
- If using stock wheels 1.5in wheel spacers are required.
- On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.
Specifications
| Part number | 68230 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 4" |
| Configuration | Premium N3 |
| Drive | 4WD |
| Estimated install time | 4-5 hours |
| Tire and wheel fitment | 295/70R18 on 18x10 (-25 offset); 295/60R20 on 20x9 (+1 offset); 295/60R20 on 20x9 (-12 offset); 285/75R17 on 17x9 (+1 offset); 285/75R18 on 18x9 (-12 offset); 295/60R20 on 20x10 (-25 offset); more |
| Shipping weight | 99.15 lb |
| Instruction sheet | 92168100 |
| Fits | 2007-2018 Jeep Wrangler JK |
| Manufacturer applications | 2007-2017 Jeep Wrangler Rubicon (4WD); 2007-2017 Jeep Wrangler (4WD) |
