6 Inch Lift Kit from Rough Country, part 594.20, for 2008-2010 Ford F-350 Super Duty/F-250 Super Duty. This is the Premium N3, Diesel configuration. Estimated install time is 6-8 hours.
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
Features
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength

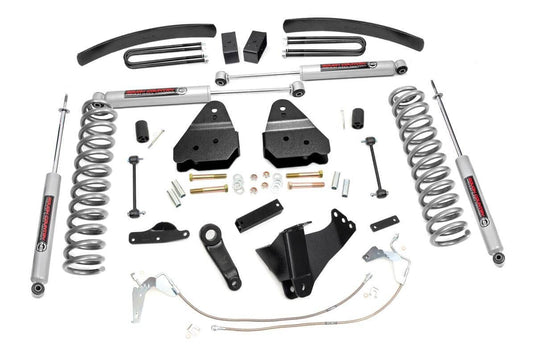

What's in the box
- Front: Lifted coil springs
- Front: Radius arm drop brackets
- Front: Extended sway-bar links
- Front: Track bar drop bracket
- Front: Stabilizer relocation brackets
- Front: Pitman arm
- Front: Stainless steel braided brake lines
- Front: Bumpstop spacers
- Front: Hardware
- Rear: 3in lift blocks
- Rear: Add-a-leafs
- Rear: Carrier bearing drop bracket
- Rear: U-bolts
- Rear: Hardware
- Shocks: (4) Premium N3 Series
Notes
- Does NOT fit dually models.
- If vehicle is equipped with rear overload leafs, they will need to be removed.
- Gas models may require exhaust modification to clear front drive shaft
Specifications
| Part number | 594.20 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 6" |
| Configuration | Premium N3, Diesel |
| Drive | 4WD |
| Estimated install time | 6-8 hours |
| Tire and wheel fitment | 35x11.50R20 on 20x9 (-12 offset); 35x12.50R18 on 18x9 (+0 offset); 295/65R20 on 20x9 (-12 offset); 35x12.50R20 on 20x10 (-19 offset); 35x12.50R17 on 17x9 (-12 offset); 35x12.50R18 on 18x9 (+1 offset); more |
| Shipping weight | 189.66 lb |
| Instruction sheet | 92159400 |
| Fits | 2008-2010 Ford F-350 Super Duty/F-250 Super Duty |
| Manufacturer applications | 2008-2010 Ford F-350 Super Duty (4WD); 2008-2010 Ford F-250 Super Duty (4WD) |
