4.5 Inch Lift Kit from Rough Country, part 50620, for 2017-2022 Ford F-250 Super Duty/F-350 Super Duty. Configuration: Axle tube: 4in Diameter; Front driveshaft: No; N3 Shocks. Estimated install time is 6-10 hours.
Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country's 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
Features
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod

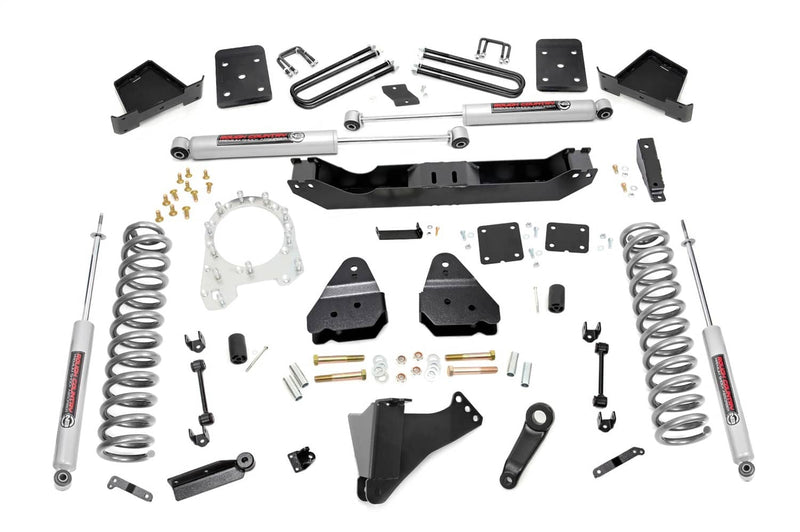

What's in the box
- Front: Lifted coil springs
- Front: Radius arm drop brackets
- Front: Clocking ring kit
- Front: Sway-bar links
- Front: Track bar drop bracket
- Front: Stabilizer relocation brackets
- Front: Pitman arm
- Front: Brake line brackets
- Front: Bumpstop spacers
- Front: Hardware
- Rear: Fabricated lift blocks
- Rear: Brake line brackets
- Rear: U-bolts
- Rear: Hardware
- Shocks: (4) Premium N3 series
Notes
- Models equipped with a 10-speed transmission must remove dial pin.
- Does NOT fit gas engine models.
- Vertex kits do NOT allow use of factory wheels.
- Does NOT fit dually models.
- Does NOT fit manual shift transfer cases.
- Does NOT work on models equipped with Tremor Factory Trim Package.
Specifications
| Part number | 50620 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 4.5" |
| Configuration | Axle tube: 4in Diameter, Front driveshaft: No, N3 Shocks |
| Drive | 4WD |
| Estimated install time | 6-10 hours |
| Tire and wheel fitment | 295/60R20 on 20x9 (-12 offset); 295/70R18 on 18x10 (-19 offset); 295/70R18 on 18x10 (-25 offset); 35x12.50R20 on 20x10 (-25 offset); 295/70R18 on 18x8.5 (+0 offset); 35x12.50R22 on 22x10 (-18 offset); more |
| Shipping weight | 231.26 lb |
| Instruction sheet | 921550200F:Kit Instructions;921550020:Clocking Ring Install |
| Fits | 2017-2022 Ford F-250 Super Duty/F-350 Super Duty |
| Manufacturer applications | 2017-2022 Ford F-350 Super Duty (4WD); 2017-2022 Ford F-250 Super Duty (4WD) |
