5 Inch Lift Kit from Rough Country, part 37530, for 2019-2024 Ram 3500. Variant: Diesel, Non-AISIN. Estimated install time is 6-8 hours.

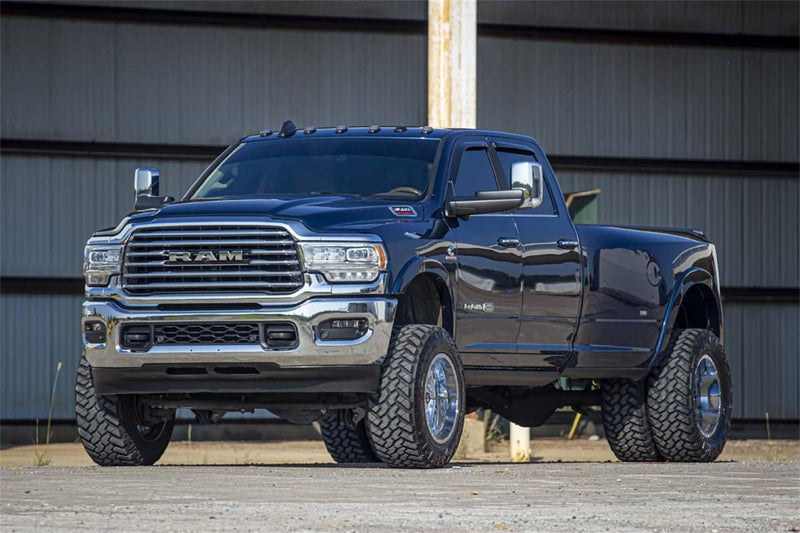

Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
Features
- Increased ground clearance
- Track bar bracket keeps the front axle properly centered
- Radius Arms offer a more factory‐like angle and feature a durable, durable rubber Bushings for maximum vibration absorption
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off‐road use.

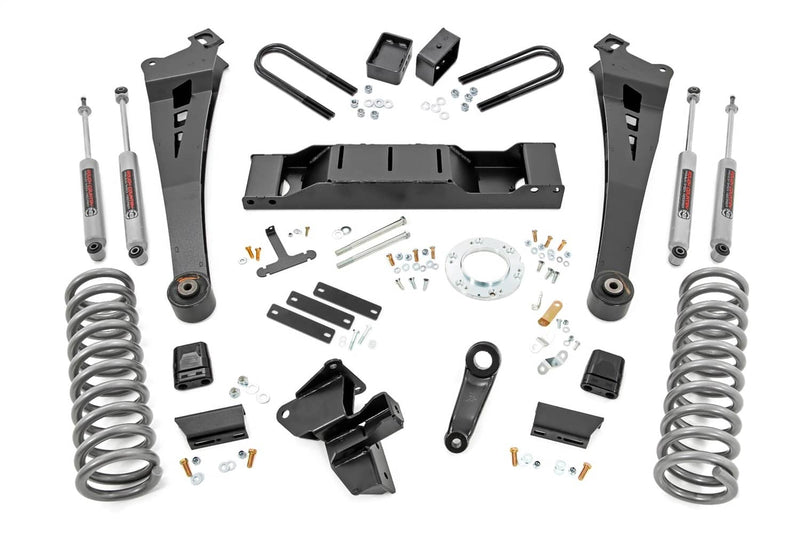

What's in the box
- Front: Lifted Coil springs
- Front: Radius arms
- Front: Track Bar bracket
- Front: Transmission crossmember
- Front: clocking ring
- Front: Sway-bar brackets
- Front: Pitman arm
- Front: Carrier bearing shims
- Front: Hardware
- Rear: Rear lift blocks
- Rear: U-bolts
- Rear: Track bar bracket
- Rear: Sway-bar links
- Rear: Hardware
- Shocks: (4) Premium N3 Series
Notes
- Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
- Does NOT fit 'Power Wagon' models
- Does NOT fit air ride models
- Fits single rear wheel models and dual rear wheel models.
- Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
- ONLY fits Diesel models
- Requires minor cutting.
- On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Specifications
| Part number | 37530 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 5" |
| Drive | 4WD |
| Estimated install time | 6-8 hours |
| Tire and wheel fitment | 37x12.50R18 on 18x10 (-18 offset); 37x12.50R18 on 18x10 (-19 offset); 37x12.50R18 on 18x8.5 (+0 offset); 37x12.50R18 on 18x9 (+1 offset); 37x12.50R22 on 22x10 (-25 offset); 37x12.50R17 on 17x8.5 (+0 offset); more |
| Shipping weight | 274.39 lb |
| Instruction sheet | 921375300B:Non-AISIN Transmission;921378300C:Upgraded AISIN Transmission |
| Fits | 2019-2024 Ram 3500 |
| Manufacturer applications | 2019-2024 Ram 3500 (4WD) |
