5 Inch Lift Kit from Rough Country, part 369.20, for 2013-2015 Ram 3500. Variant: Non-Dually. Estimated install time is 4-6 hours.
New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with an mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
Features
- Increased ground clearance
- Maintains factory progressive rate coil springs
- Track bar bracket keeps the front axle properly centered.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

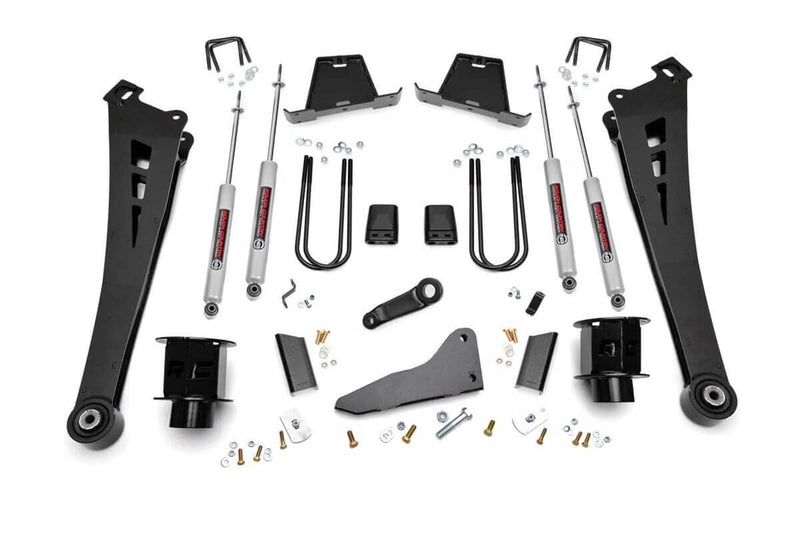

What's in the box
- Front: Coil spring spacers
- Front: Radius arms
- Front: Track bar bracket
- Front: Sway-bar brackets
- Front: Pitman arm
- Front: Hardware
- Rear: 4in fabricated lift blocks
- Rear: U-bolts
- Rear: Hardware
- Shocks: (4) Premium N3 Series
Notes
- Requires minor drilling and cutting.
- Does NOT fit Dually models.
- Does NOT fit "Power Wagon" models.
- Does NOT fit models with rear air suspension.
- Models equipped with factory rear overload springs will need to remove the overload spring
- On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Specifications
| Part number | 369.20 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 5" |
| Drive | 4WD |
| Estimated install time | 4-6 hours |
| Shipping weight | 199.02 lb |
| Instruction sheet | 921369200 |
| Fits | 2013-2015 Ram 3500 |
| Manufacturer applications | 2013-2015 Ram 3500 (4WD) |
