5 Inch Lift Kit from Rough Country, part 36030, for 2019-2024 Ram 2500. Variant: Non-AISIN. Estimated install time is 7-9 hours.

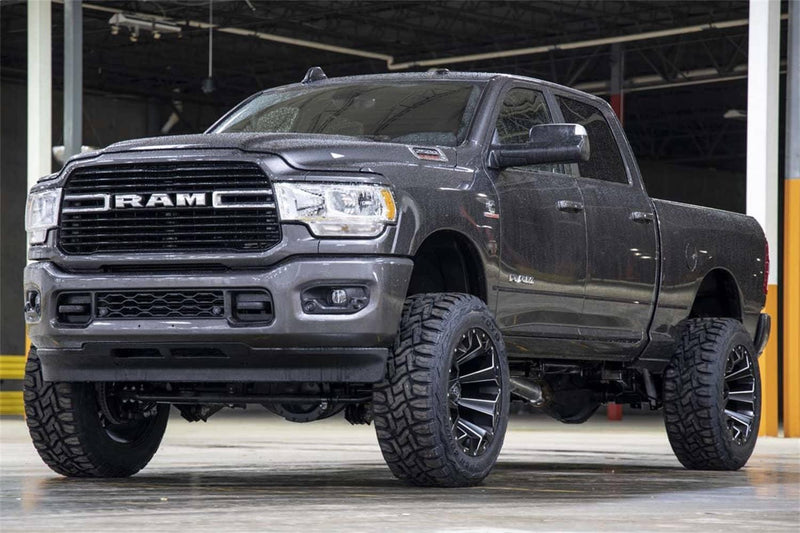

Compliment your RAM 2500's aggressive, good looks with Rough Country's new 5-inch Lift Kit with lifted coil springs. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
Features
- Increased ground clearance.
- Track bar bracket keeps the front axle properly centered.
- Radius Arms offer a more factory-like angle and feature a durable, durable rubber Bushing for maximum vibration absorption.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

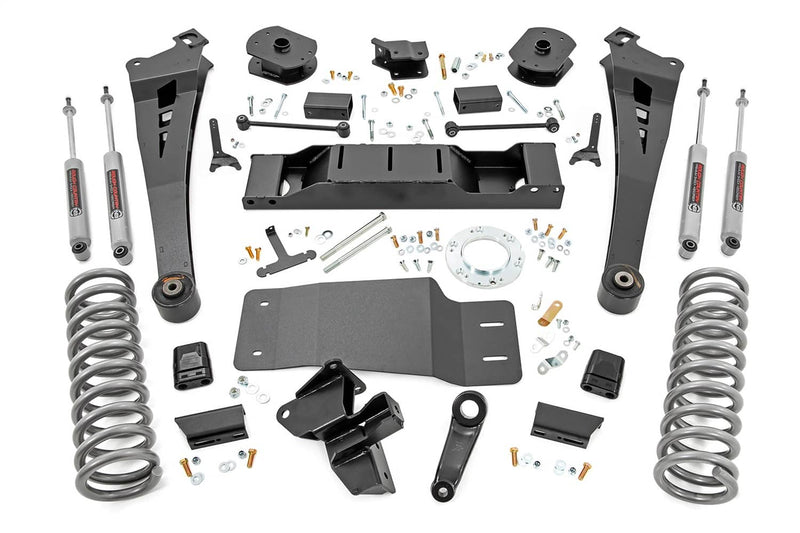

What's in the box
- Front: Lifted Coil springs
- Front: Radius arms
- Front: Track bar bracket
- Front: Bump stops
- Front: Sway-bar brackets
- Front: Transmission Crossmember
- Front: Pitman arm
- Front: Hardware
- Rear: Optional: Lifted Coil springs
- Rear: Rear lift spacers
- Rear: Track bar bracket
- Rear: Transfer Case Skid Plate
- Rear: Sway-bar links
- Rear: Bump stop brackets
- Rear: Ride height arms
- Rear: Hardware
- Shocks: (4) Premium N3 Series
Notes
- Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
- Does NOT fit 'Power Wagon' models
- Does NOT models with a manual transfer case.
- Fits diesel models ONLY.
- Standard rate coil spring options fit air ride and non-air ride models.
- Dual rate coil spring options fit non-air ride models ONLY.
- Requires minor cutting.
- On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration.
Specifications
| Part number | 36030 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 5" |
| Drive | 4WD |
| Estimated install time | 7-9 hours |
| Tire and wheel fitment | 35x12.50R17 on 17x9 (+1 offset); 35x12.50R17 on 17x9 (-12 offset); 35x12.50R20 on 20x10 (-18 offset); 35x12.50R20 on 20x10 (-25 offset); 35x12.50R20 on 20x12 (-44 offset); 35x12.50R20 on 20x9 (+0 offset); more |
| Shipping weight | 295.15 lb |
| Instruction sheet | 921360300F |
| Fits | 2019-2024 Ram 2500 |
| Manufacturer applications | 2019-2024 Ram 2500 (4WD) |
