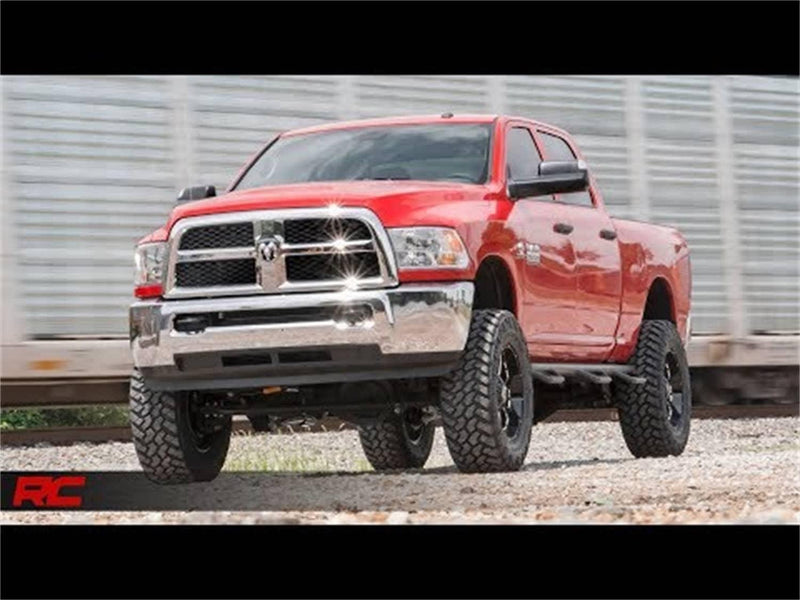

5 Inch Lift Kit from Rough Country, part 35720, for 2014-2018 Ram 2500. Variant: FR Spacer, Radius Arm Drop. Estimated install time is 6-8 hours.
Compliment your RAM 2500's aggressive, good looks with Rough Country's 5-inch Lift Kit. This kit is designed for Dodge RAM's equipped with either factory rear coils or factory rear air ride suspension.
Features
- Increased ground clearance
- Maintains factory progressive rate coil springs
- Track bar bracket keeps the front axle properly centered.
- Fits both rear coil spring and rear air ride suspension models!
- Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

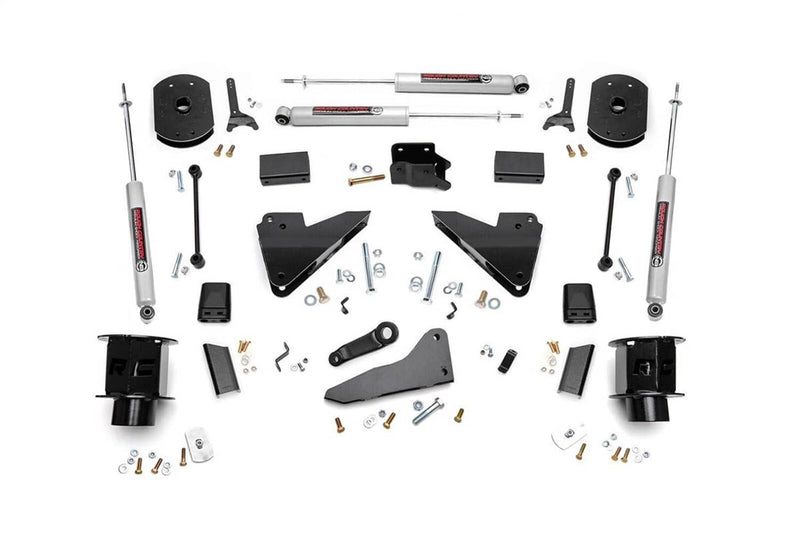

What's in the box
- Front: Coil spring spacers
- Front: Radius arm drop brackets
- Front: Track bar bracket
- Front: Sway-bar brackets
- Front: Pitman arm
- Front: Hardware
- Rear: Rear lift spacers
- Rear: Track bar bracket
- Rear: Sway-bar links
- Rear: Bump stop brackets
- Rear: Ride height arms
- Rear: Hardware
- Shocks: (4) Premium N3 Series
Notes
- Does NOT fit "Power Wagon" models.
- Requires drilling and cutting.
- On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. SKU: 1161.
Specifications
| Part number | 35720 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 5" |
| Drive | 4WD |
| Estimated install time | 6-8 hours |
| Tire and wheel fitment | 37x12.50R17 on 17x9 (+1 offset); 37x12.50R18 on 18x9 (+1 offset); 37x12.50R17 on 17x9 (+0 offset); 37x12.50R20 on 20x10 (-18 offset); 37x12.50R20 on 20x9 (+1 offset); 37x12.50R18 on 18x9 (+0 offset); more |
| Shipping weight | 137.26 lb |
| Instruction sheet | 921364200 |
| Fits | 2014-2018 Ram 2500 |
| Manufacturer applications | 2014-2018 Ram 2500 (4WD) |
