5 Inch Lift Kit from Rough Country, part 34430A, for 2019-2024 Ram 1500. This is the With 22in Factory Wheels, Strut Spacers w/N3 Rear Shocks configuration. Estimated install time is 7-8 hours.
This all-inclusive kit delivers everything you need to give your truck an aggressive, commanding stance that perfectly complements the rugged design and upgraded styling of your RAM.
Features
- Boosted Off-Road Performance: Increased ground clearance for better obstacle clearance and rugged terrain capability
- Balanced Ride Height: Levels front of vehicle with rear to improve stance and provide even handling
- Factory Comfort Retained: Maintains factory air ride modes to preserve original ride quality and smooth performance.
- Supports Up to 35-Inch Tires: Provides the clearance and lift height needed to run larger wheels and tires for a more aggressive stance.
- Rear N3 Nitrogen-Charged Shocks: Included shocks are specifically valved for a smooth, responsive ride on and off the pavement.

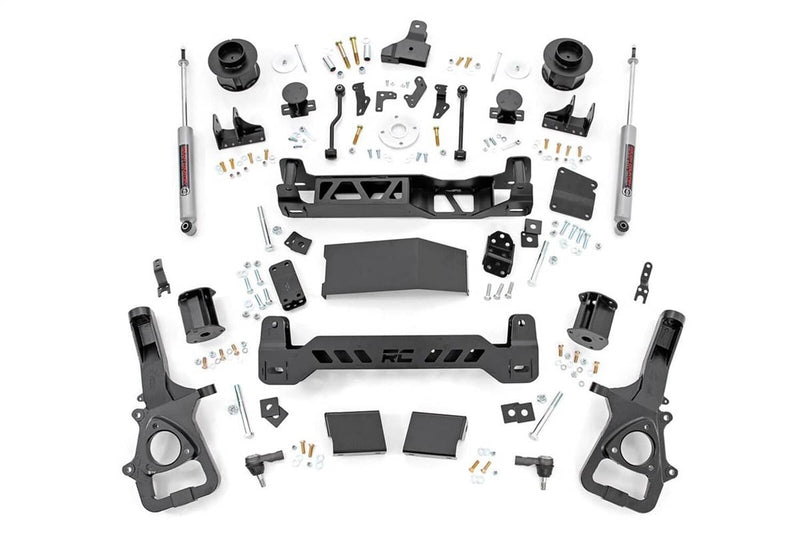

What's in the box
- Front: Lifted Knuckles
- Front: Strut Spacers
- Front: Front Crossmember
- Front: Rear Crossmember
- Front: Differential Drop Brackets
- Front: Driveshaft Spacer
- Front: Sway-Bar Links
- Front: Skid Plate
- Front: Hardware
- Rear: Coil Spacers
- Rear: Sway-Bar Links
- Rear: Track Bar Bracket
- Rear: Bump-Stop Extensions
- Rear: Brake Line Brackets
- Rear: Brake Lines
- Rear: Hardware
- Shocks: (2) Premium N3 Shock Absorbers
Notes
- ONLY fits models with 4-Corner Air-Suspension found standard on Limited and Limited Longhorn models. This package is an available upgrade across multiple sub-models. For a visual to confirm if your vehicle is equipped, click here.
- Does NOT fit 2019-2024 1500 Classic models. For a visual please click here.
- Does NOT fit Rebel models as they are equipped with a off-road-tuned suspension geometry.
- This kit is NOT recommended for AWD models due to pinion angle issues, which cause drivetrain vibrations.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
- Does NOT fit factory wheels.
Specifications
| Part number | 34430A |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 5" |
| Configuration | With 22in Factory Wheels, Strut Spacers w/N3 Rear Shocks |
| Drive | 4WD |
| Estimated install time | 7-8 hours |
| Tire and wheel fitment | 35x12.50R20 on 20x10 (-18 offset); 35x12.50R20 on 20x10 (-25 offset); 295/60R20 on 20x10 (-18 offset); 295/60R20 on 20x10 (-19 offset); 295/60R20 on 20x10 (-25 offset); 295/60R20 on 20x9 (-12 offset); more |
| Shipping weight | 192.18 lb |
| Instruction sheet | 921338300C |
| Fits | 2019-2024 Ram 1500 |
| Manufacturer applications | 2019-2024 Ram 1500 (4WD) |
