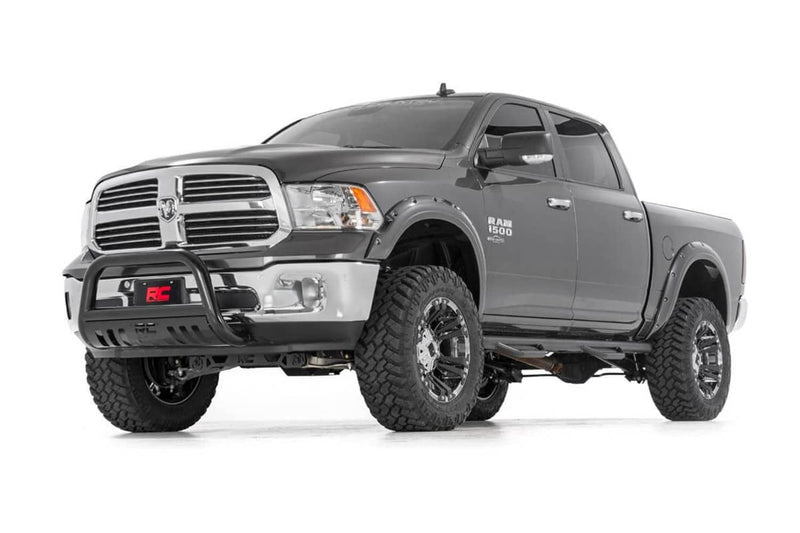

6 Inch Lift Kit from Rough Country, part 33231, for 2012-2024 Ram 1500 Classic. This is the Strut Spacers w/N3 Rear Shocks configuration. Estimated install time is 7-8 hours.
Transform your fourth-generation RAM 1500 with Rough Country's complete 6in Suspension Lift Kit. This all-inclusive system delivers an aggressive, commanding stance that perfectly complements your truck's rugged new design.
Features
- Preserves Smooth Factory Ride: Enjoy the same comfortable and controlled driving experience.
- Boosts Ground Clearance: Tackle rough terrain and obstacles with added confidence.
- Achieves a Balanced Stance: Levels the front and rear for a sleek, aggressive look.
- Optimized Ride Quality: Application-specific dual-rate rear coil springs are available to enhance handling, comfort, and load support across varying terrains.
- Fully Configurable with All Shock Options: Choose from our nitrogen-charged N3 shocks to the premium Vertex reservoir for the perfect ride quality.

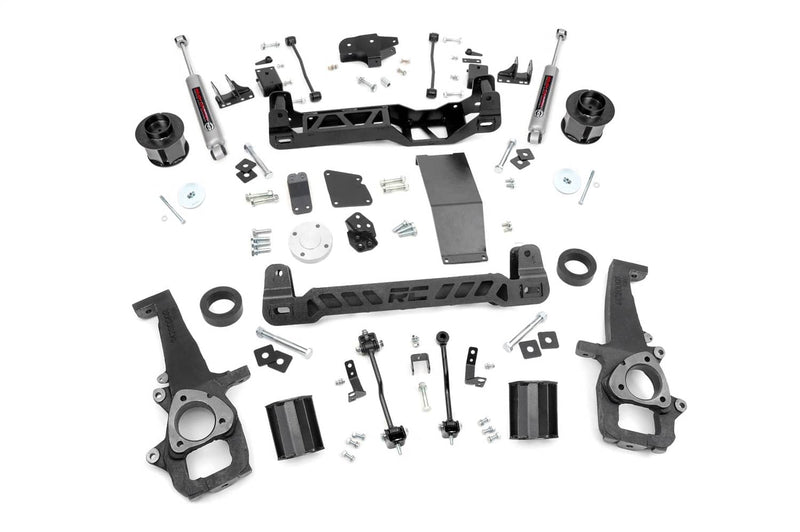

What's in the box
- Front: Lifted Knuckles
- Front: (2) Upper Strut Spacers
- Front: Front Crossmember
- Front: Rear Crossmember
- Front: Differential Drop Brackets
- Front: Driveshaft Spacer
- Front: Sway-Bar Links
- Front: Skid Plate
- Front: Hardware
- Rear: Coil Spacers
- Rear: Upper Control Arm Brackets
- Rear: Sway-Bar Links
- Rear: Track Bar Bracket
- Rear: Bump-Stop Brackets
- Rear: Brake Line Brackets
- Rear: Hardware
- Shocks: (2) Premium N3 Shock Absorbers
Notes
- Due to variances in motor weight our replacement struts do NOT fit models equipped with a 3.6L Pentastar V6 engine.
- Does NOT fit models with 4-Corner Air-Suspension found standard on Rebel and Limited models. This package is an available upgrade across multiple sub-models. For a visual to confirm if your vehicle is equipped, click here.
- Does NOT fit Warlock models as they are equipped with a 1-inch factory lift.
- This kit is NOT recommended for AWD models due to pinion angle issues, which cause drivetrain vibrations.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
Specifications
| Part number | 33231 |
|---|---|
| Brand | Rough Country |
| Type | Suspension Lift Kits |
| Lift height | 6" |
| Configuration | Strut Spacers w/N3 Rear Shocks |
| Drive | 4WD |
| Estimated install time | 7-8 hours |
| Tire and wheel fitment | 35x12.50R20 on 20x10 (-19 offset); 35x12.50R20 on 20x10 (-25 offset); 35x12.50R22 on 22x10 (-18 offset); 35x12.50R22 on 22x10 (-19 offset); 37x12.50R20 on 20x10 (-18 offset); 35x12.50R20 on 20x12 (-44 offset); more |
| Shipping weight | 207.2 lb |
| Instruction sheet | 921332000E: Kit Installation;Ram 06-19 1500 Loaded Strut: Optional Strut Installation;921680019: Optional Front Vertex Installation;Ram 1500 Rear Vertex Shocks: Optional Rear Vertex Installation |
| Fits | 2012-2024 Ram 1500 Classic |
| Manufacturer applications | 2019-2024 Ram 1500 Classic (4WD); 2012-2018 Ram 1500 (4WD) |
