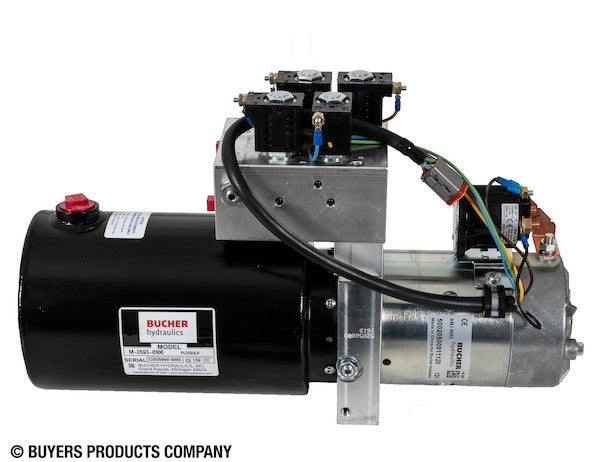

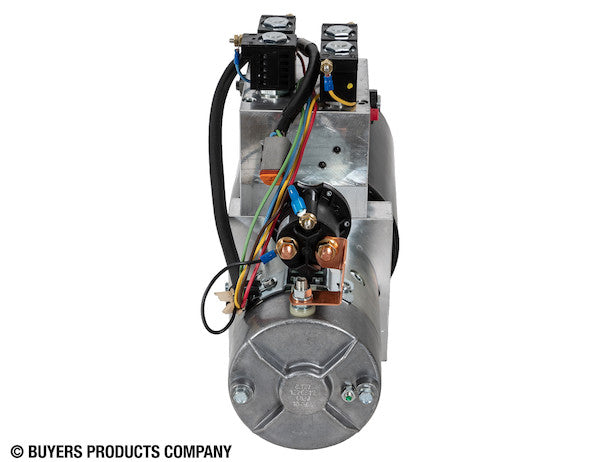

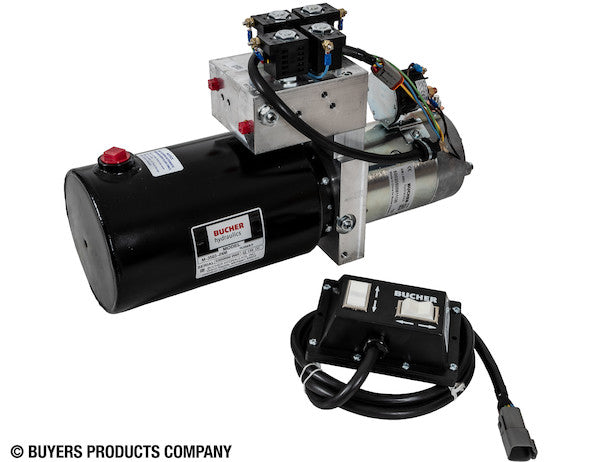

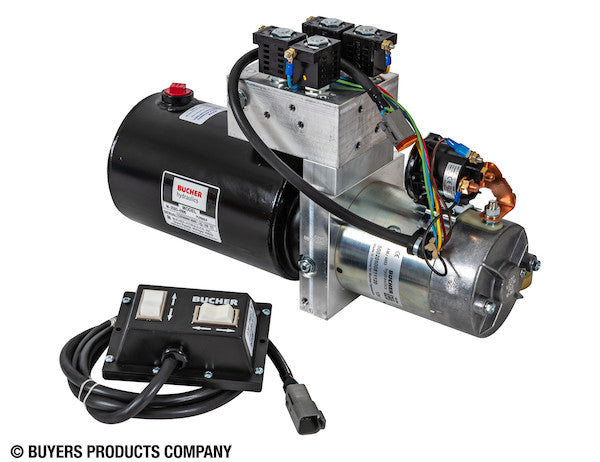

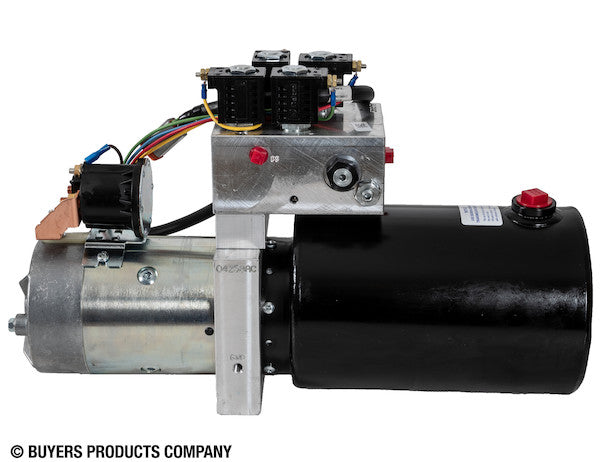

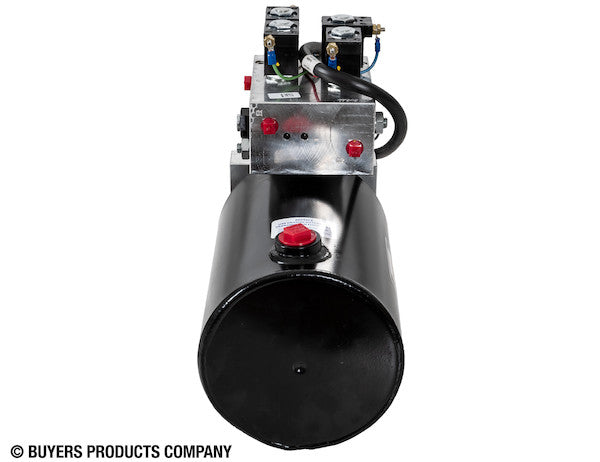

4-Way/3-Way DC Power Unit - Electric Control Series

The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.

Product Common Use: Snow Plows

Product Featues

• Compact, cost-effective power for snow plow lift and angle operations.

• Includes everything you need to power the job.

• Unit contains two independent circuits: 3 way for plow hoist; 4 way for power angle.

• Easy fingertip controls.

• Crossover relief valve protects cylinder and blade should the plow strike a hidden object.


Product Details

• Manual Or Push ButtonPush Button
• Mounting PositionHorizontal
• Reservoir Material Carbon Steel
• Motor Horsepower2 HP
• Reservoir Volume (Gal)0.83
• Pressure Rating2000 PSI
• Motor Voltage12 VDC
• Width6.00 "
• Length17.38 "
• Height 13.81 "
• Spool ActionPower Up/Gravity Down, Power Up/Power Down
• Number Of Cartridge Valves4
• Outlet Port Size1/4 NPT
• Controller Included?Y
• Control Cable Length72 "
• Motor Power (KW)1.5
