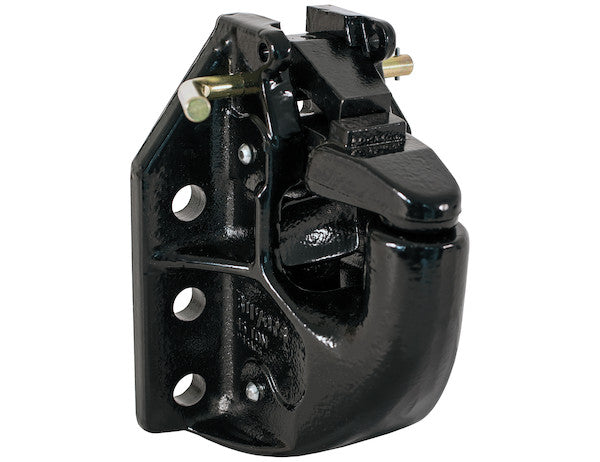

This 45 Ton Air Compensated Pintle Hitch has a 6-hole bolt-on mounting pattern and is built from austempered ductile iron. It uses the vehicle air system to hold the drawbar eye closely, reducing slack and absorbing shock between truck and trailer in heavy-duty semi trailer work, off-road and over-the-road. An air brake chamber is required and can be ordered separately or together as a kit.
- Rated to 90,000 lb. M.G.T.W. and 18,000 lb. M.V.L.

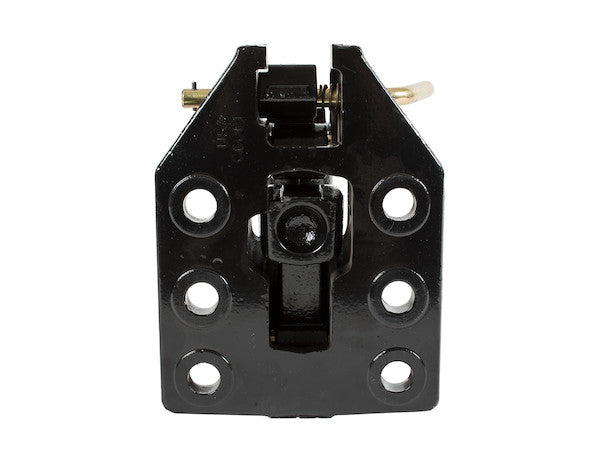

- Six-hole bolt-on mounting pattern.
- Austempered ductile iron body with corrosion-resistant powder-coat finish.
- Spring-loaded lock arm holds 2-3/8 in. to 3 in. I.D. lunette eyes and drawbars.

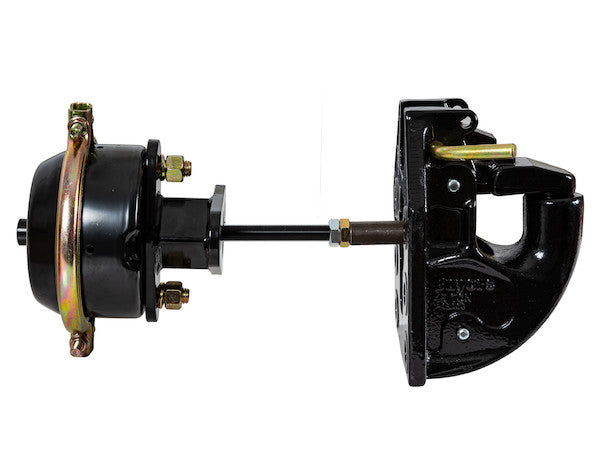

- Air brake chamber required - order separately or as a kit.
- Note: not compatible with the Fabricators Pintle Mount Hitch Plate.
Specifications
- Pintle Hook Type: Air Compensated
- Maximum Gross Trailer Weight: 90,000 lb
- Maximum Vertical Load: 18,000 lb
- Drawbar Eye Inner Diameter: 2.38-3.00
- Horizontal Hole Spacing: 5.00
- Vertical Hole Spacing: 2.125 Bottom / 2.375 Top
- Mounting Hole Diameter: 0.781
- Material: Austempered Ductile Iron
- Finish: Powder-Coat
- Colour: Black
- Includes: Pintle Hook Only
