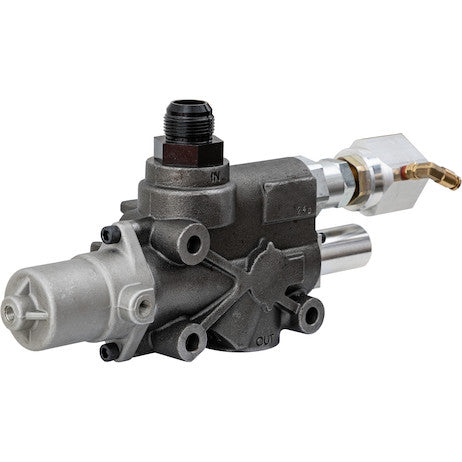

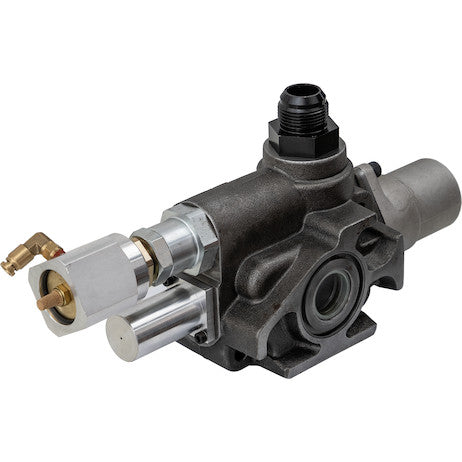

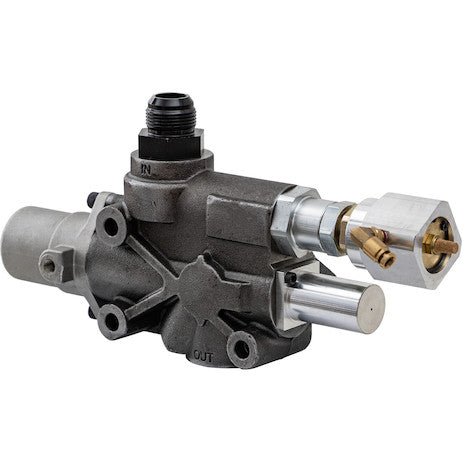

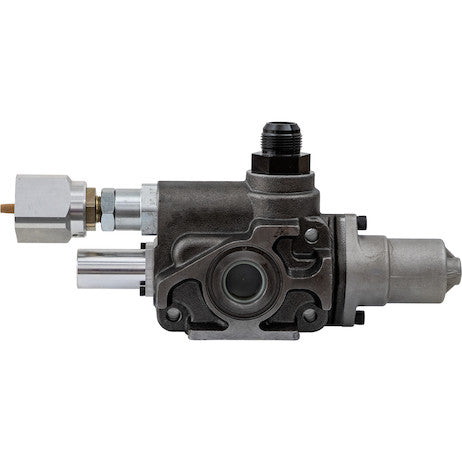

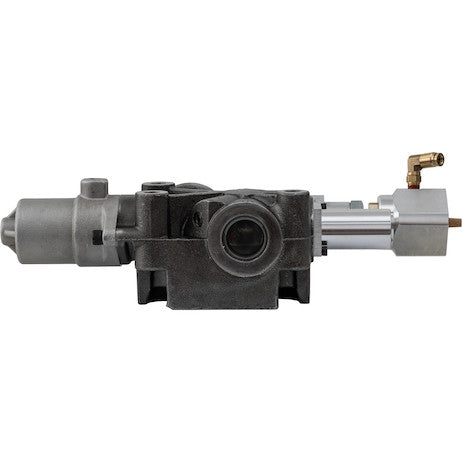

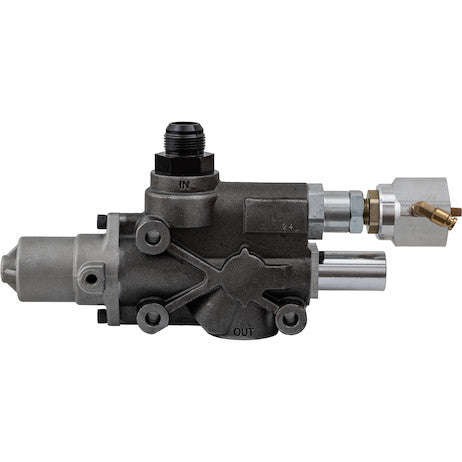

Buyers Products Hydraulic Tipper Valves control the flow of hydraulic fluid for a 3-way or single-acting hydraulic function. Commonly used in high-flow tipping applications like dump trucks and end dump trailers with a single-acting cylinder, these valves can also supply controlled hydraulic flow for walking floor, refuse compaction, full-ejection, and many other applications.
These valves feature an integral air shifter to be operated by a feathering control like Buyers Products 64570000 (or others from that series), the Buyers K80 series controls, or an on/off control such as the Buyers BAV020 series, and an adjustable main relief.
The HTV-100DP includes an adjustable dual pressure setting that allows this valve to seamlessly operate a wide range of equipment. These tipper valves are built tough to provide reliable performance in heavy-duty environments and withstand harsh operating conditions
- High flow capacity to meet the requirements of large dump trucks or end dump trailers.
- Regulates flow and limits pressure, providing reliable performance in heavy-duty environments.
- Integral air shifter for use with feathering or on/off style controls (available separately).
- 3-way single acting function three position functions ? Pressure (Raise) / Hold / Return (Lower).
Specifications
- Electrically Operated (y/n): No
- Inlet Port Size: 1 JIC (-16)
- Main Relief Setting: 2000 PSI
- Maximum Flow Rate: 60 GPM
- Maximum Pressure: 3500 PSI
- Outlet Port Size: 1 SAE ORB (-16)
- Power Beyond (y/n): No
- Spool Action 1: Power Up/Gravity Down - Spring Center
- Work Port Size: 1 SAE ORB (-16)
