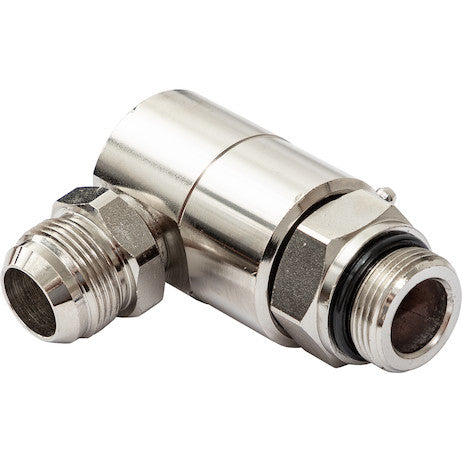

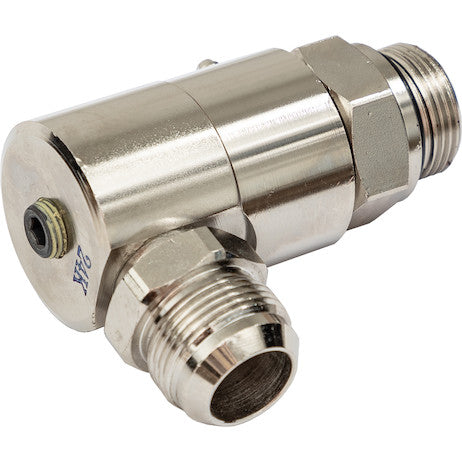

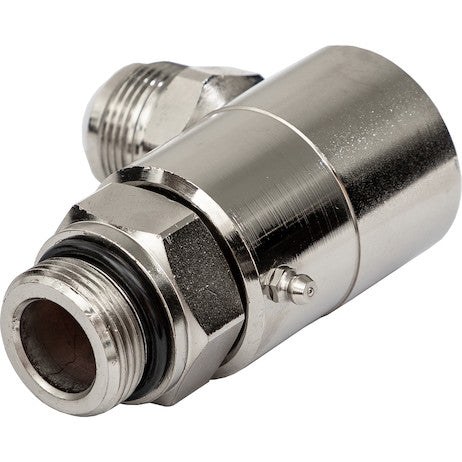

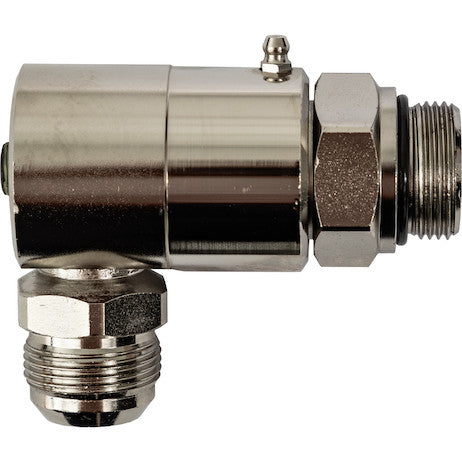

Buyers Products Live Swivel Fittings are often used on dump trucks to connect plumbing to the telescopic hoist cylinder, allowing the cylinder to rotate freely at the trunnion mount without stressing the hydraulic hose. They reduce the risk of hose twisting and kinking, one of the major causes of hose failure.
Compact 90° design allows for installation in tight spaces. Allows for full 360° continuous rotation with ball bearing supported swivel joint. SAE O-Ring and JIC connections for simple, leak-free installation. Nickel-plated, heat-treated steel construction for durability and long life even in extreme conditions.
- Reduces the risk of hose twisting and kinking, one of the major causes of hose failure.
Specifications
- Finish: Nickel Plated
- Material: Steel
- Maximum Pressure: 3500
- Sealing Method: Live swivel with greasable ball bearing and double seal
- Shape: 90° Elbow
- Side 1: 1 MORB
- Side 2: 1 MJIC
- Style: MM
