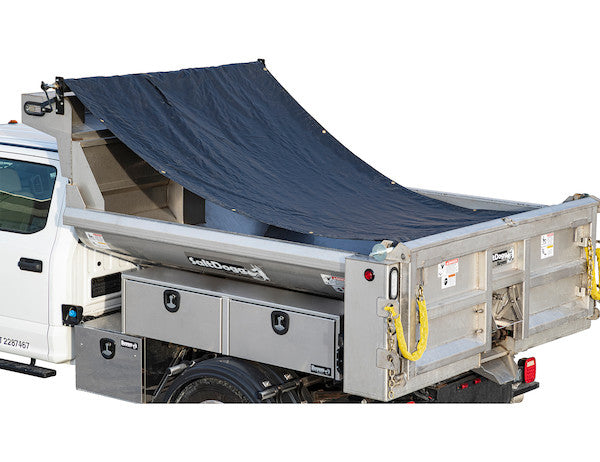

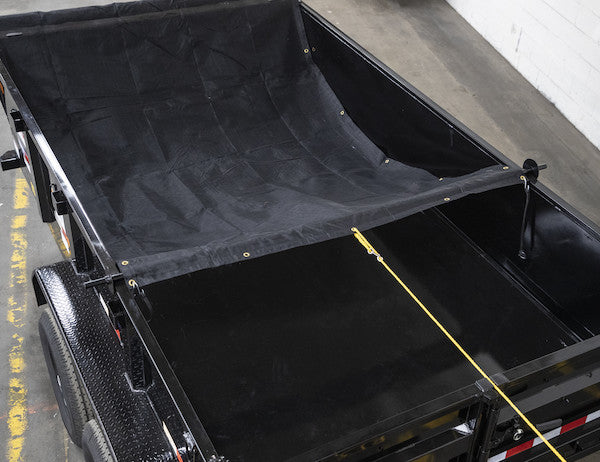

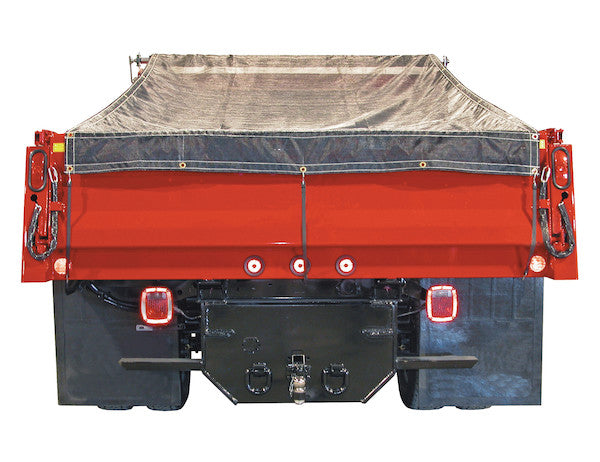

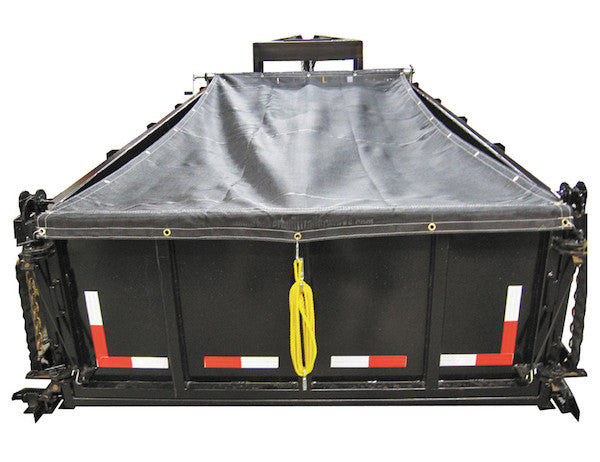

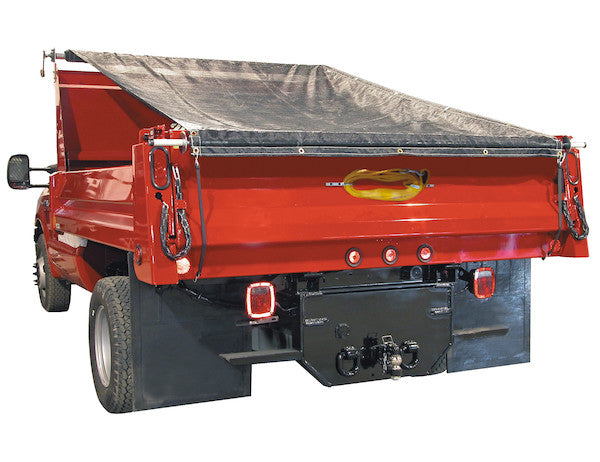

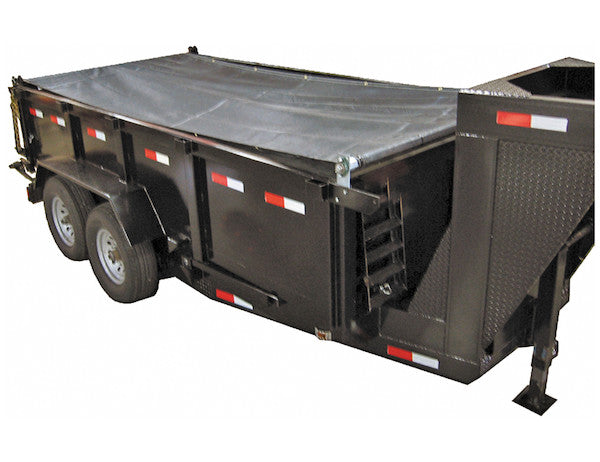

A complete DTR series dump tarp kit with a 5-1/2 x 14 ft PVC-coated vinyl mesh tarp, built for straightforward dump body and dump trailer applications. The extruded aluminum tarp roller telescopes to the exact width of the truck, so one kit covers a range of body widths and the tarp sits square instead of running off to one side.
- Built for dump body and dump trailer tarp applications
- Extruded aluminum roller telescopes to the exact width of your truck
- PVC-coated vinyl mesh tarp with brass grommets and double-stitched, reinforced hems
- UV inhibitor in the tarp for outdoor service
- Sewn-in rear pocket accepts an optional anti-sail retention bow (sold separately)

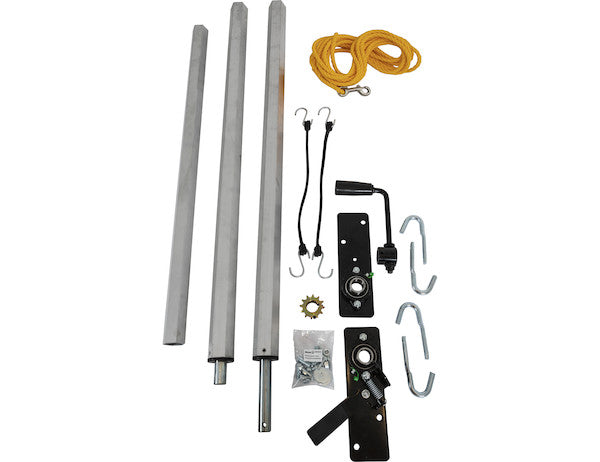

- Includes 7 in. folding crank with detent, tarp roller, 20 ft pull rope, rope tie-down hooks, mounting brackets and two rubber tarp straps with S-hooks
Specifications
- Tarp width: 5.5 ft
- Tarp length: 14 ft
- Tarp material: PVC-coated vinyl mesh
- System style: Manual dump
- Crank handle length: 7 in.
- Pull rope length: 20 ft
- Rubber tie-down straps: 2 included, 15 in.
- Anti-sail retention bow included: No
