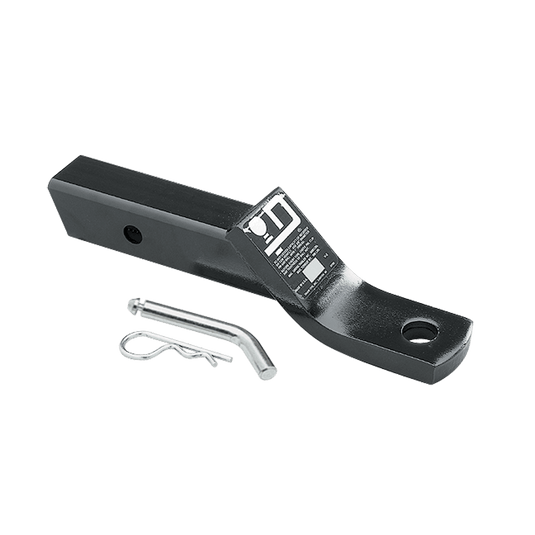

Draw-Tite's 2923 is a class 4 ball mount with a 2" receiver fit, a 1" ball hole and 2" of drop. Rated to 7,500 lb with 750 lb of tongue weight. Built in steel with a black powder coat finish. Fitting the mount either way up gives you the drop or the rise, so the trailer sits level behind the truck.
- Rated for class 4 towing
- Capacity 7,500 lb
- Tongue weight 750 lb
- Fits a 2" receiver
- 2" drop
- 3/4" rise
- 1" ball hole
- Hitch pin included
- Steel construction
- Black Powder Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 2923 |
|---|---|
| Type | Trailer Hitch Ball Mount |
| Hitch class | Class IV |
| Receiver size | 2" |
| Drop | 2" |
| Rise | 3/4" |
| Ball hole | 1" |
| Capacity | 7,500 lb |
| Tongue weight | 750 lb |
| Shank length | 8-1/2" |
| Pin diameter | 5/8" |
| Adjustable | No |
| Hitch pin included | Yes |
| Finish | Black Powder Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 13.85" x 3.9" x 2.7" (Shipping) |
| Weight | 6.65 lb |
| UPC | 742512029239 |
| Warranty | Limited Lifetime Warranty |
