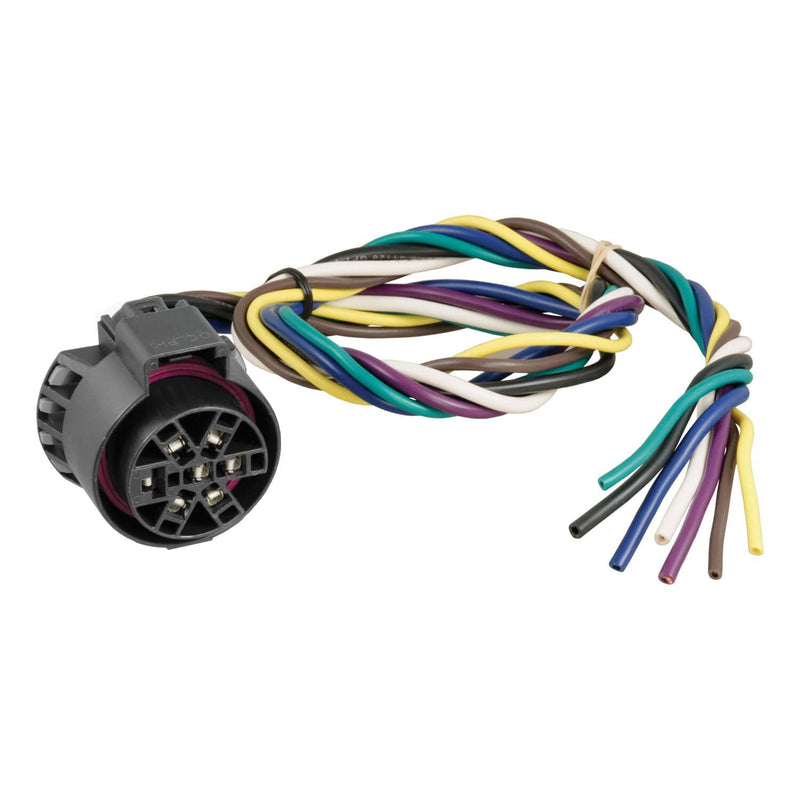

CURT 56229 is a replacement 7-way USCAR socket for the vehicle side of the trailer wiring connection, supplied with 24" of color-coded, bonded wire. It replaces a damaged or missing USCAR vehicle harness and is spliced into the vehicle's wiring. It is sold as a splice-in part, not by vehicle.
The socket supplies tail lights, turn signals, brake lights, reverse lights, electric trailer brakes, battery power and a ground connection. The housing is rust-free black plastic. It can also add a USCAR-type 7-way socket to a vehicle that does not have one, for use with CURT 55415, 55515, 55664, 55774, 56415, 56515 or 57101.

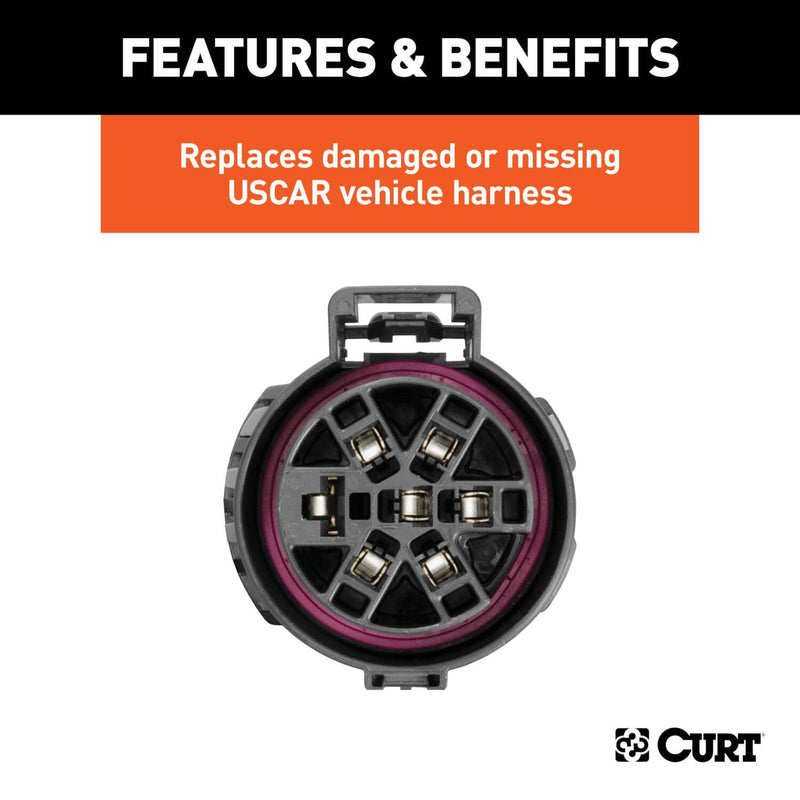

- Replaces a damaged or missing USCAR vehicle harness

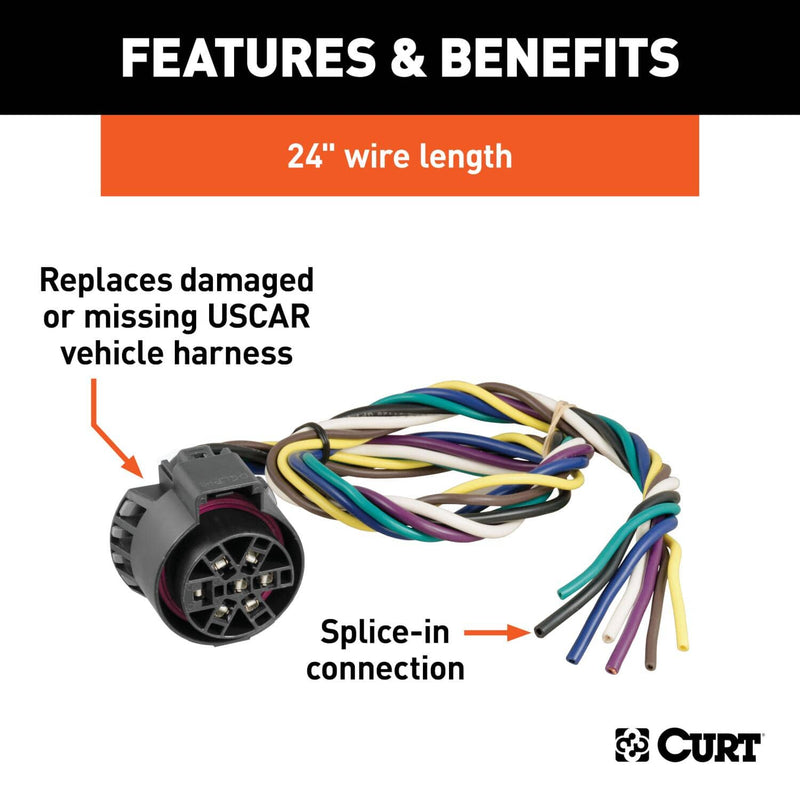

- 24" color-coded, bonded wires
- Female-end socket for the vehicle side of the connection
- Retrofits a weatherproof USCAR-type 7-way to vehicles not equipped, for use with CURT 55415, 55515, 55664, 55774, 56415, 56515 or 57101
- One-year limited warranty
Specifications
| Part number | 56229 |
|---|---|
| Brand | CURT |
| Type | Replacement USCAR Socket |
| Side | Vehicle end |
| Connector | 7-Way USCAR |
| Wire length | 24" |
| Installation | Novice |
| Product weight | 0.49 lb |
| Warranty | One-year limited |
Fitment
- Splices into the vehicle's wiring: this is not a plug-in part
- Use it to replace an existing USCAR socket, or to add one for the CURT connectors listed above
