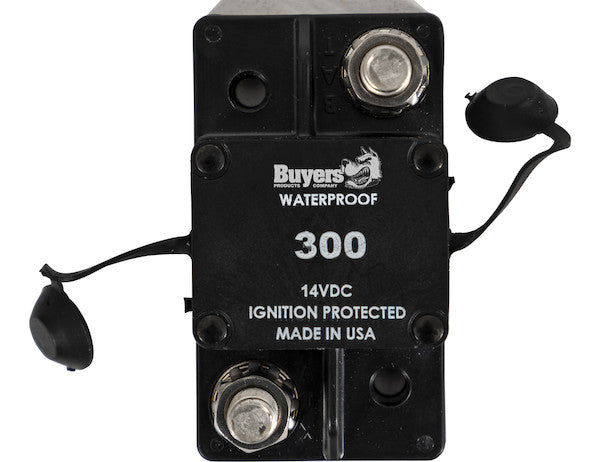

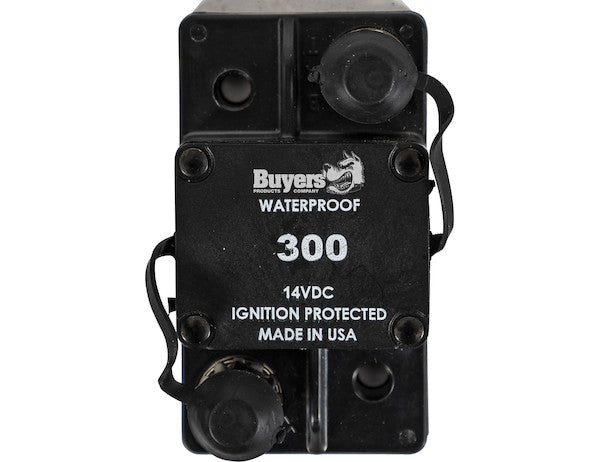

The Buyers Products 300 amp large frame circuit breaker with auto reset protects high-current circuits on dump hoists, lift gates, salt spreaders and cranes. The large frame leaves extra clearance around the stud for heavy gauge connectors, and the auto reset makes it a good fit for breakers mounted out of easy reach. The housing is water-resistant and IP67 rated against water and dust intrusion.
- Trip current rated at 300 A
- Large frame gives additional clearance around the stud for heavy gauge connectors
- Automatic reset suits circuits that are out of easy reach
- Protects dump hoist, lift gate, salt spreader and crane high-current circuits
- Waterproof design, IP67 rated for water and dust intrusion
- Part of the Buyers Products 150A-300A large frame range
Specifications
- Trip current: 300 A
- Reset type: Auto
- Maximum voltage: 42 VDC
- Ingress rating: IP67
- Stud material: Brass
- Housing material: Plastic
- Length: 3.325"
- Width: 1.875"
