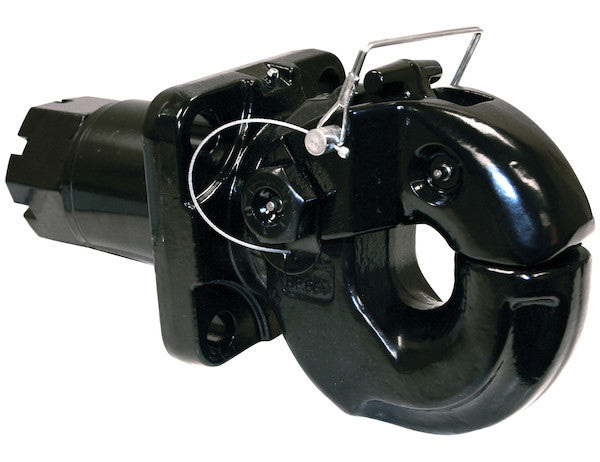

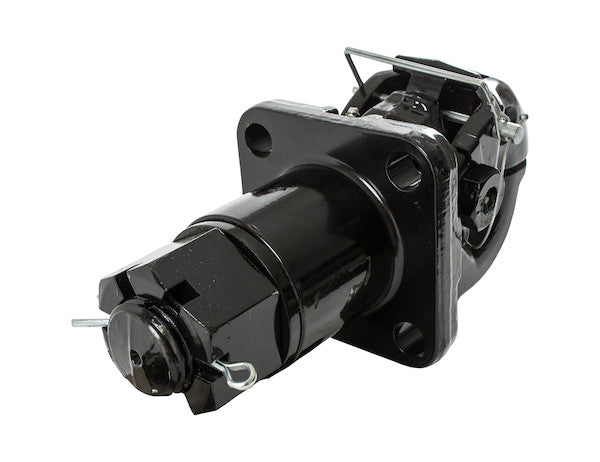

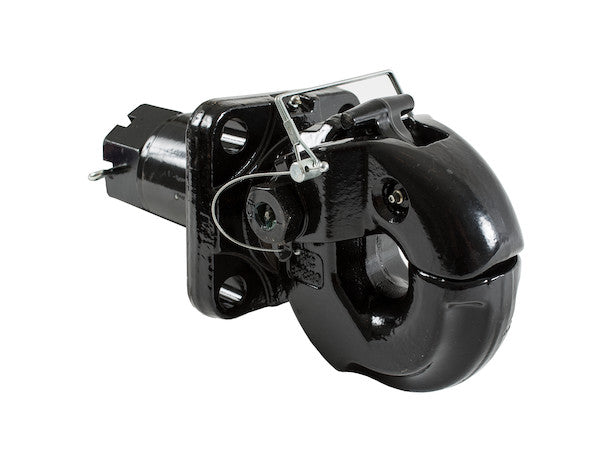

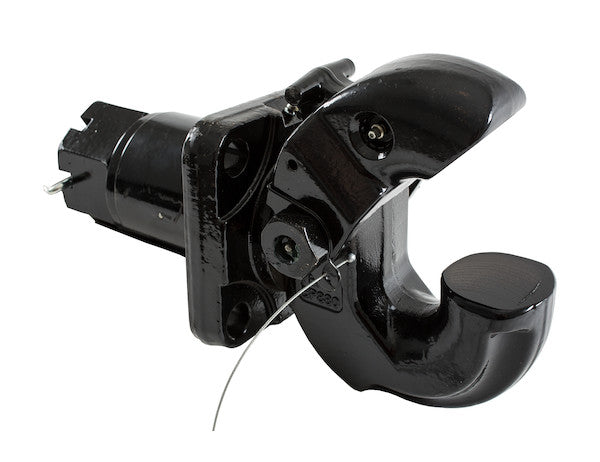

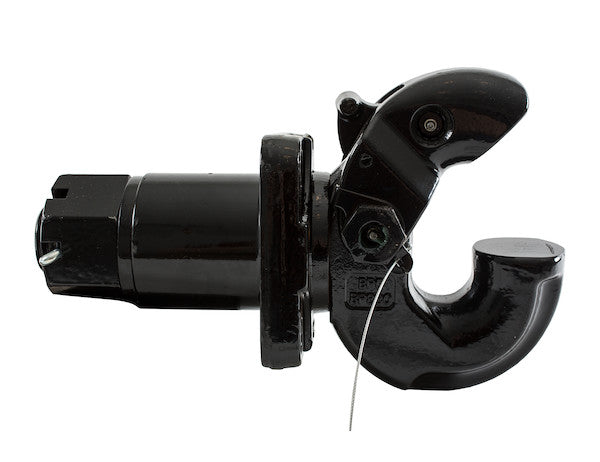

This 50 Ton Pintle Hitch is a swivel type forged steel pintle hook rated for a maximum gross trailer weight of 100,000 lb. The swivel action lets the hook travel over curbs, broken ground and uneven terrain, reducing stress on the towing components behind construction equipment, utility rigs and military trailers. For off-road use the load should be reduced by 25%.
- Swivel action allows towing heavy equipment over uneven terrain.
- Forged steel construction rated to 100,000 lb. M.G.T.W.

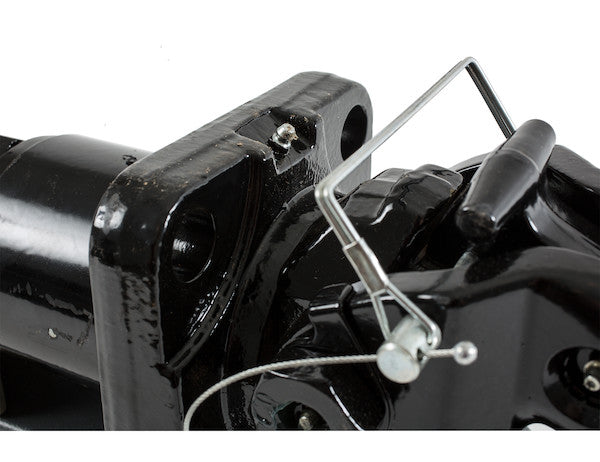

- Spring-loaded lock arm holds 3 in. I.D. lunette eyes and drawbars.
- Easy access to the grease fitting for routine servicing.
- Meets military towing specs.
- Compares to Holland PH-775SL11, PH-775-01552 and Wallace B50 (2051108).
Specifications
- Pintle Hook Type: Swivel
- Maximum Gross Trailer Weight: 100,000 lb
- Maximum Vertical Load: 20,000 lb
- Drawbar Eye Inner Diameter: 3.0
- Horizontal Hole Spacing: 4.50
- Vertical Hole Spacing: 4.50
- Mounting Hole Diameter: 0.938
- Material: Forged Steel
- Finish: Powder-Coat
- Colour: Black
