Bilstein's 53-264817 is a B8 5100 steering damper for 2013-2026 Ram 2500/3500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.

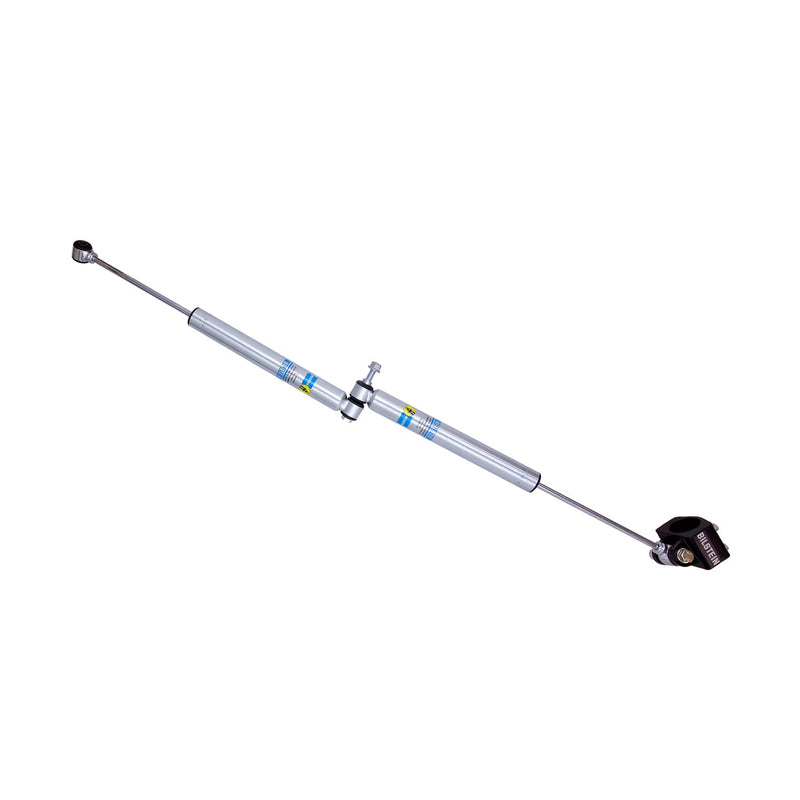

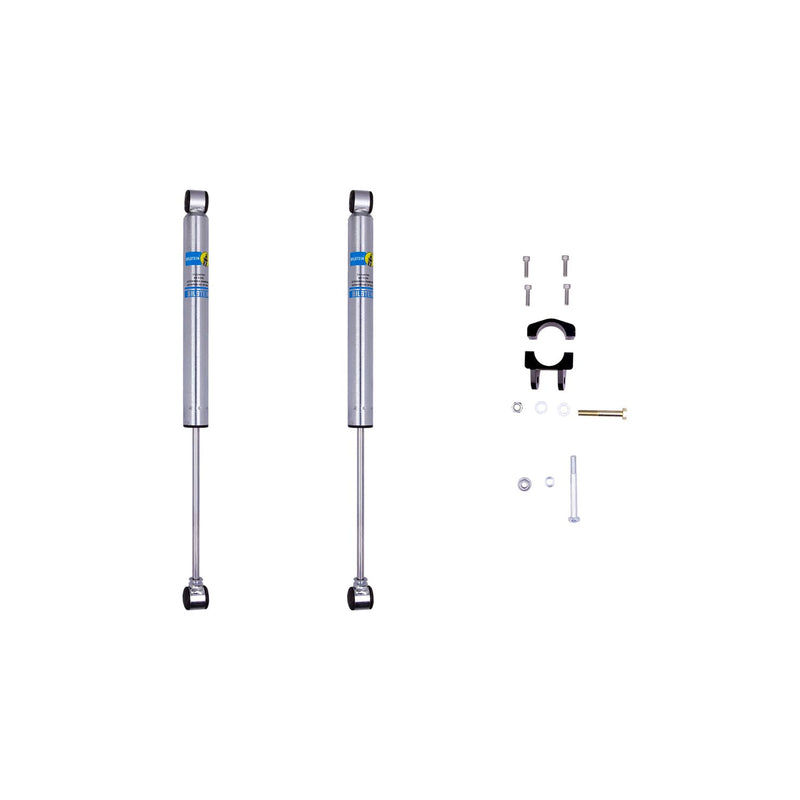

Bilstein B8 5100 (Dual Steering Damper Kit) is designed as a bolt on auxiliary kit for solid axle 4WD vehicles. This kit features 2 steering dampers offering improved steering isolation. The dual kit mounts both dampers inline and opposing each other, which greatly enhances the “on center” feel. The steering dampers, included in the kit, are a gas pressurized monotube design and will provide fully functional damping in a horizontal position. These steering dampers, by design, have the advantage of controlling even the slightest steering movements to reduce steering wheel shake. With Bilstein B8 5100 (Dual Steering Damper Kit), you will greatly improve the steering feedback and handling of your vehicle.
- Monotube design
- Smooth Body (Non-Coilover)
- 36 mm piston
- 11 mm shaft
- Zinc Plated finish
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 53-264817 |
|---|---|
| Series | B8 5100 |
| Type | Steering Damper Kit |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Upper mount | Eye |
| Lower mount | Eye |
| Body diameter | 2.0" |
| Piston diameter | 36 mm |
| Shaft diameter | 11 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Boot included | No |
| Replacement damper | 33-240763 |
| Shipping weight | 8.80 lb |
| Fits | 2013-2026 Ram 2500/3500 |
| Manufacturer applications | Ram 2500 2014-2026, 3500 2013-2026 |
Replaces / interchanges with: AutoZone 913435, BQNV 53264817.
