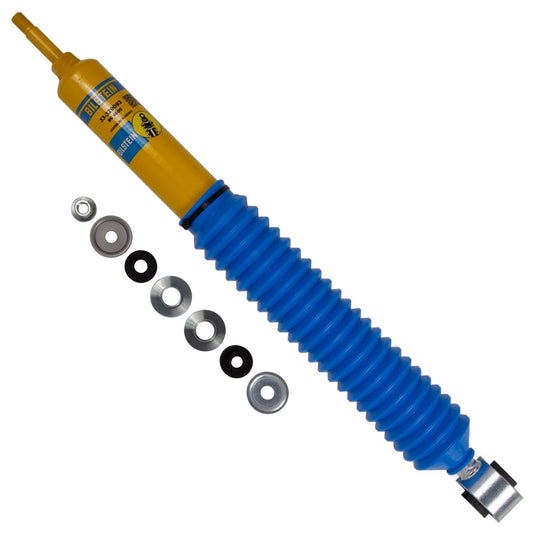

Bilstein's 33-329093 is a B6 4600 rear shock absorber for 2003-2024 Toyota 4Runner/FJ Cruiser. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Bellows)
- Replacement mounting kit: B4-KT1-Z441A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-329093 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 14.89" (378.3 mm) |
| Extended length | 22.64" (575.0 mm) |
| Stroke / travel | 7.63" |
| Upper mount | Stem |
| Lower mount | Eye 19.1mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Bellows |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z441A00 |
| Shipping weight | 6.00 lb |
| Fits | 2003-2024 Toyota 4Runner/FJ Cruiser |
| Manufacturer applications | Lexus GX460 2010-2023, GX470 2003-2009, Toyota 4Runner 2003-2024, FJ Cruiser 2007-2014 |
Replaces / interchanges with: Bilstein 24-186049, Bilstein 24-187558, Bilstein BE5-C514, Bilstein BE5-H151, Bilstein F4-BE5-C514-H0, Bilstein F4-BE5-H151-H0, BQNV 33329093, FOX Offroad Shocks 980-24-675, Lexus 48530-69655, Pro Comp Suspension 321513, Pro Comp Suspension 322553, Pro Comp Suspension 921513, Pro Comp Suspension 922553, Pro Comp Suspension MX6148, Pro Comp Suspension ZX2083, Rancho RS5397, Rancho RS999305, Toyota 48530-09P20, Toyota 48530-09S20, Toyota 48530-09U20, Toyota 48530-80087, Toyota 48530-80088, Toyota 48530-80299, Toyota 48530-80300, Toyota 48530-80354, Toyota 48530-80355, Toyota 48530-80371, Toyota 48530-80372, Toyota 48530-80460, Toyota 48530-80461, Toyota 48530-80505, Toyota 48530-80537, Toyota 48530-80538, Toyota 48530-80539, Toyota 48530-80540, Toyota 48530-80541, Toyota 48530-80548, Toyota 48530-80549, Toyota 48530-80603, Toyota 48530-80604, Toyota 48530-80605, Toyota 48530-80606, Toyota 48530-80607, Toyota 48530-80608, Toyota 48530-80609.
