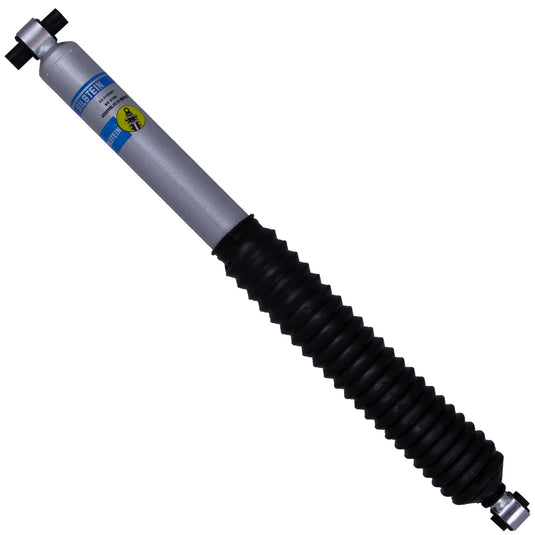

Bilstein's 33-316321 is a B8 5100 rear shock absorber for 2018-2026 Jeep Wrangler. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 0-1.5" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 0-1.5" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-316321 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 16.93" (430.0 mm) |
| Extended length | 26.94" (684.2 mm) |
| Stroke / travel | 10.01" |
| Upper mount | Eye 12.8mm |
| Lower mount | Eye 12.8mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Lift range | 0-1.5" lift |
| Shipping weight | 6.00 lb |
| Fits | 2018-2026 Jeep Wrangler |
| Manufacturer applications | Jeep Wrangler 2018-2026 |
Replaces / interchanges with: BQNV 33316321, FOX Offroad Shocks 985-24-172, Jeep 68382606AB, Jeep 68382606AC, Jeep 68382850AB, Jeep 68382850AC, Jeep 68382853AA, Jeep 68382855AA, Jeep 68382856AB, Jeep 68382858AC, Jeep 68517629AB, Jeep 68518574AA, Jeep 68527789AA, Jeep 68527789AB, Jeep 68527790AB, Jeep 68527791AA, Jeep 68527791AB, Jeep 68527795AA, Jeep 68527796AA, Jeep 68527796AB, Jeep 68527797AA, Jeep 68527797AB, Jeep 68527965AA, Jeep 68527966AA, Jeep 68527966AB, Jeep 68546967AA, Jeep 68546970AA, Jeep 68546972AA, Jeep 68546973AA, Jeep 68552675AA, Jeep 68631407AA, Jeep 68638595AA, Jeep 68638597AA, Jeep 68638602AA, Jeep 68638608AA, Jeep 68638609AA, Jeep 68666030AA, Rancho RS77064.
