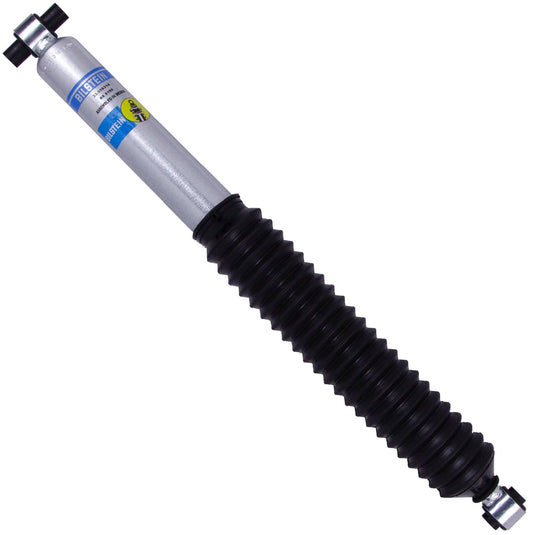

Bilstein's 33-316314 is a B8 5100 front shock absorber for 2018-2026 Jeep Wrangler. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 0-1.5" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 0-1.5" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-316314 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 15.86" (402.8 mm) |
| Extended length | 24.84" (631.0 mm) |
| Stroke / travel | 8.98" |
| Upper mount | Eye 12.8mm |
| Lower mount | Eye 12.8mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Lift range | 0-1.5" lift |
| Shipping weight | 6.00 lb |
| Fits | 2018-2026 Jeep Wrangler |
| Manufacturer applications | Jeep Wrangler 2018-2026 |
Replaces / interchanges with: BQNV 33316314, FOX Offroad Shocks 985-24-171, Jeep 68382607AB, Jeep 68382607AC, Jeep 68382828AB, Jeep 68382828AC, Jeep 68382829AA, Jeep 68382830AB, Jeep 68383632AB, Jeep 68383632AC, Jeep 68383633AA, Jeep 68517629AA, Jeep 68527780AA, Jeep 68527781AA, Jeep 68527781AB, Jeep 68527782AA, Jeep 68527782AB, Jeep 68527792AA, Jeep 68527793AA, Jeep 68527793AB, Jeep 68527794AA, Jeep 68527794AB, Jeep 68527963AB, Jeep 68527964AA, Jeep 68527964AB, Jeep 68546968AA, Jeep 68546969AA, Jeep 68552761AA, Jeep 68552764AA, Jeep 68631391AA, Jeep 68638501AA, Jeep 68638513AA, Jeep 68638515AA, Jeep 68638516AA, Jeep 68638524AA, Rancho RS77063.
