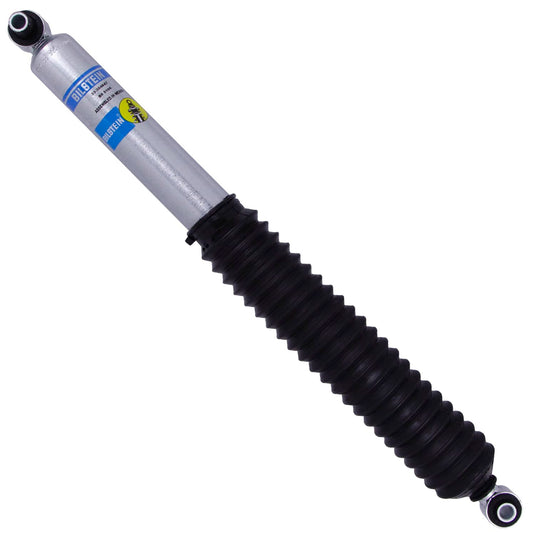

Bilstein's 33-304847 is a B8 5100 front shock absorber for 2020-2026 Jeep Gladiator. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 0-1.5" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 0-1.5" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-304847 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 15.75" (400.0 mm) |
| Extended length | 24.73" (628.2 mm) |
| Stroke / travel | 8.98" |
| Upper mount | Eye 12.8mm |
| Lower mount | Eye 12.8mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Lift range | 0-1.5" lift |
| Shipping weight | 6.00 lb |
| Fits | 2020-2026 Jeep Gladiator |
| Manufacturer applications | Jeep Gladiator 2020-2026 |
Replaces / interchanges with: BQNV 33304847, FOX Offroad Shocks 985-24-171, Jeep 68465828AF, Jeep 68465847AC, Jeep 68465848AB, Jeep 68517331AB, Jeep 68517569AA, Jeep 68517569AB, Jeep 68518562AB, Jeep 68518563AB, Jeep 68518564AB, Jeep 68518564AC, Jeep 68518572AB, Jeep 68518575AA, Jeep 68518575AB, Jeep 68525358AB, Jeep 68525358AC, Jeep 68525360AA, Jeep 68660484AA, Jeep 68660566AA, Jeep 68660567AA, Jeep 68660568AA, Jeep 68660569AA, Jeep 68660570AA, Rancho RS77063.
