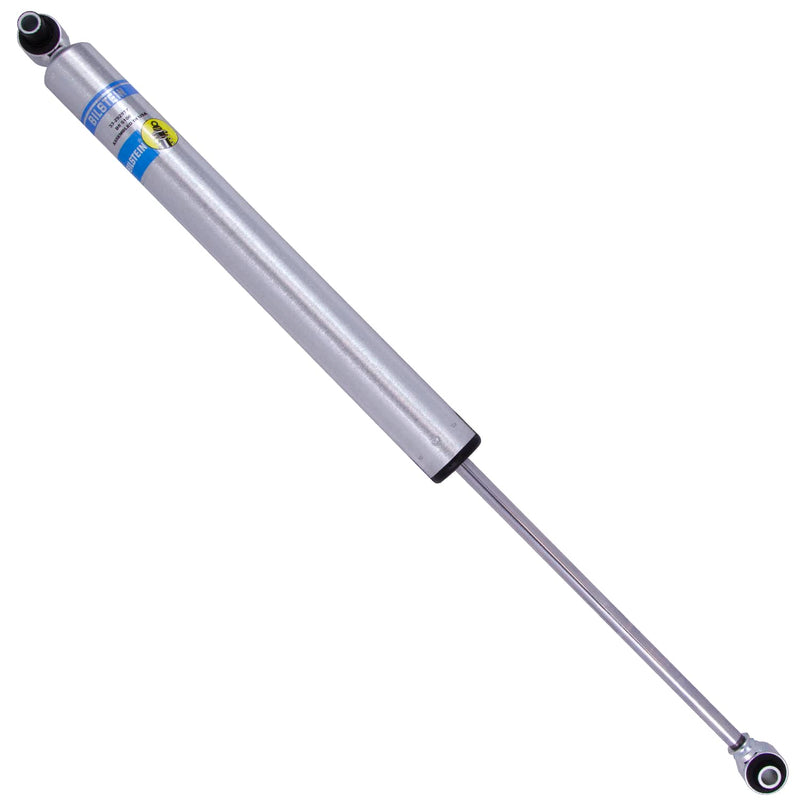

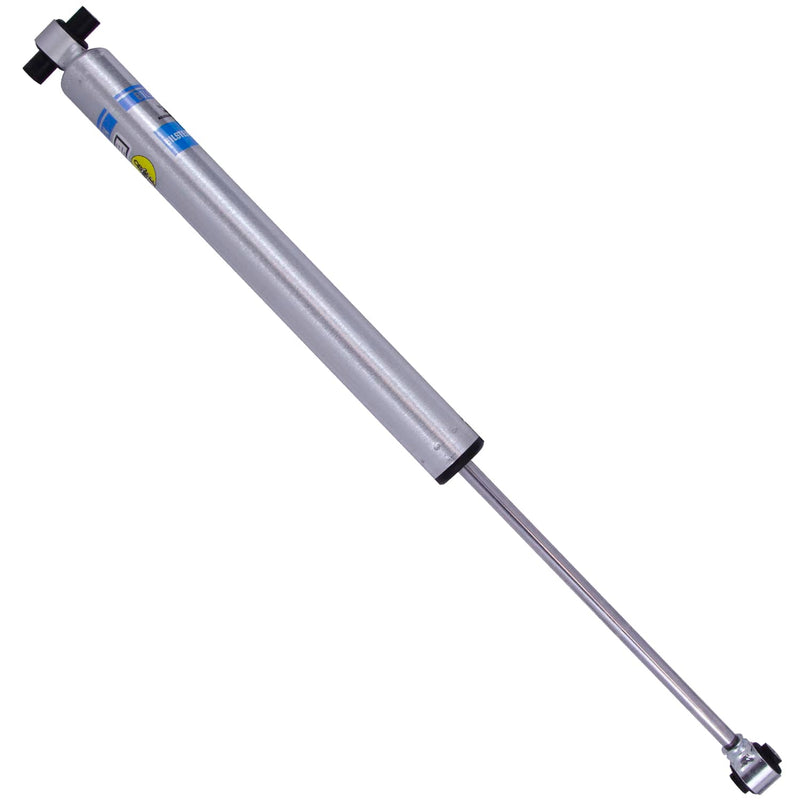

Bilstein's 33-292977 is a B8 5100 rear shock absorber for 2018-2026 Jeep Wrangler. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 3-4.5" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- For 3-4.5" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-292977 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 19.49" (495.0 mm) |
| Extended length | 31.68" (804.7 mm) |
| Stroke / travel | 12.19" |
| Upper mount | Eye 12.8mm |
| Lower mount | Eye 12.8mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | No |
| Lift range | 3-4.5" lift |
| Shipping weight | 6.00 lb |
| Fits | 2018-2026 Jeep Wrangler |
| Manufacturer applications | Jeep Wrangler 2018-2026 |
Replaces / interchanges with: BQNV 33292977, FOX Offroad Shocks 985-24-180, Rancho RS77068.
