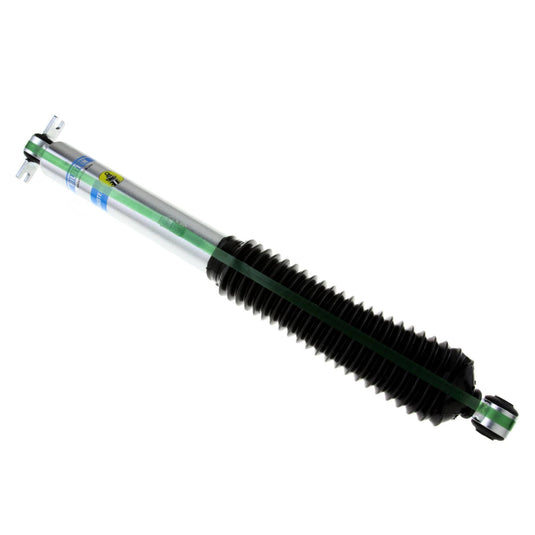

Bilstein's 33-186887 is a B8 5100 rear shock absorber for 2007-2018 Jeep Wrangler/Wrangler JK. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-186887 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 16.96" (430.8 mm) |
| Extended length | 27.36" (695.0 mm) |
| Stroke / travel | 10.40" |
| Upper mount | Bar Pin |
| Lower mount | Eye 12.1mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Shipping weight | 5.60 lb |
| Fits | 2007-2018 Jeep Wrangler/Wrangler JK |
| Manufacturer applications | Jeep Wrangler 2007-2017, Wrangler JK 2018 |
Replaces / interchanges with: AutoZone 217826, Bilstein BE5-E175, Bilstein F4-BE5-E175-H0, BQNV 33186887, FOX Offroad Shocks 980-24-642.
