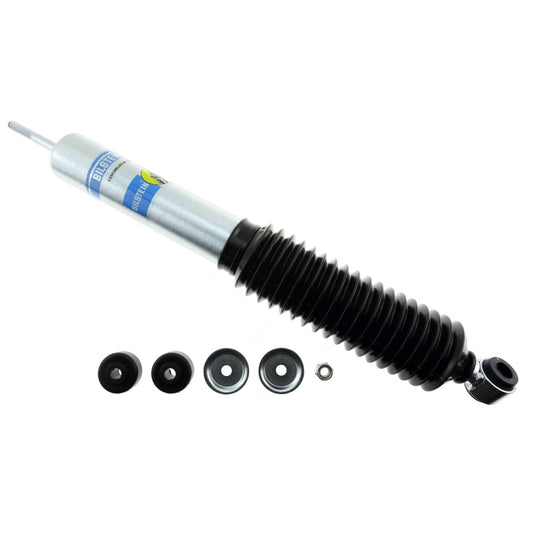

Bilstein's 33-186504 is a B8 5125 shock absorber. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 11 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- Replacement mounting kit: B4-KT1-Z097A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-186504 |
|---|---|
| Series | B8 5125 |
| Type | Suspension Shock Absorber |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 11.89" (301.9 mm) |
| Extended length | 18.53" (470.6 mm) |
| Stroke / travel | 6.64" |
| Upper mount | Stem |
| Lower mount | Eye 5/8in |
| Mount type | Stem-to-Eye |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 11 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Valving type | Firm |
| Compression @0.52 m/s | 2175 |
| Rebound @0.52 m/s | 3560 |
| Boot included | Black Bellows |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z097A00 |
| Replacement mounting kit 2 | B4-KT1-Z235A00 |
| Shipping weight | 3.99 lb |
Replaces / interchanges with: AutoZone 689221, Bilstein BE5-6140, Bilstein BE5-6140-T5, Bilstein F4-BE5-6140-H0, Bilstein F4-BE5-6140-H1, Bilstein F4-BE5-6140-H2, Bilstein F4-BE5-6140-T5, BQNV 33186504.
