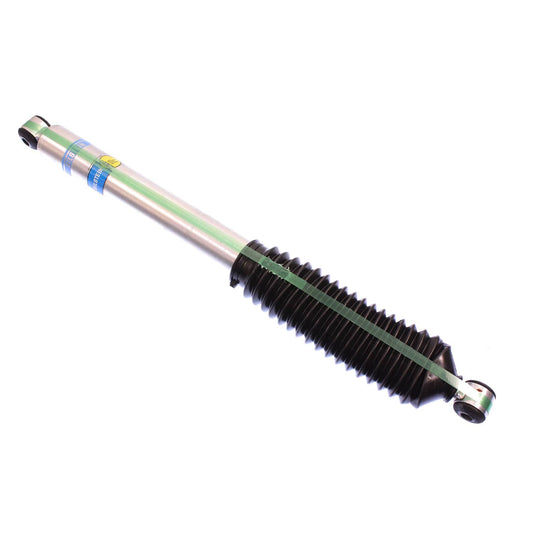

Bilstein's 33-186009 is a B8 5100 rear shock absorber for 2004-2008 Ford F-150 & Lincoln Mark LT. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 4WD models
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-186009 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 16.69" (424.0 mm) |
| Extended length | 27.11" (688.5 mm) |
| Stroke / travel | 10.42" |
| Upper mount | Eye 12mm |
| Lower mount | Eye 12mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Fitment qualifiers | 4WD |
| Shipping weight | 4.63 lb |
| Fits | 2004-2008 Ford F-150 & Lincoln Mark LT |
| Manufacturer applications | Ford F-150 2004-2008, Lincoln Mark LT 2006-2008 |
Replaces / interchanges with: AutoZone 930637, Bilstein BE5-C299, Bilstein F4-BE5-C299-H0, BQNV 33186009, FOX Offroad Shocks 985-24-029.
