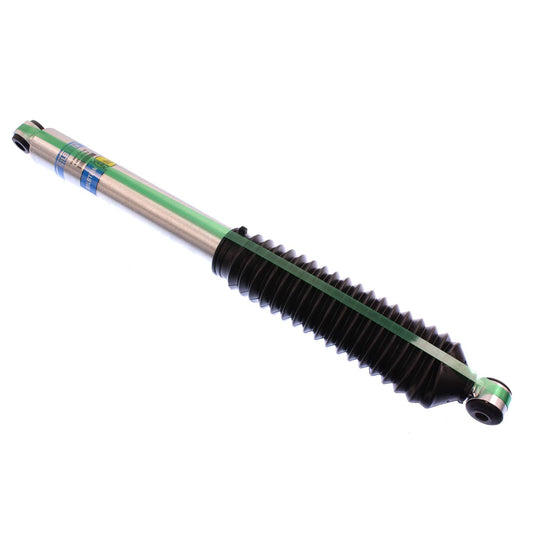

Bilstein's 33-185545 is a B8 5100 front shock absorber for 1999-2005 Ford Excursion/F-250 Super Duty/F-350 Super Duty. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-185545 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 15.96" (405.5 mm) |
| Extended length | 26.02" (661.0 mm) |
| Stroke / travel | 10.06" |
| Upper mount | Eye 16mm |
| Lower mount | Eye 12.1mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Shipping weight | 4.63 lb |
| Fits | 1999-2005 Ford Excursion/F-250 Super Duty/F-350 Super Duty |
| Manufacturer applications | Ford Excursion 2000-2005, F-250 Super Duty 1999-2004, F-350 Super Duty 1999-2004 |
Replaces / interchanges with: AutoZone 465285, Bilstein BE5-6245, Bilstein F4-BE5-6245-H5, BQNV 33185545, Rancho RS77264.
